Planet WGSW-404 User Manual

- 38 -

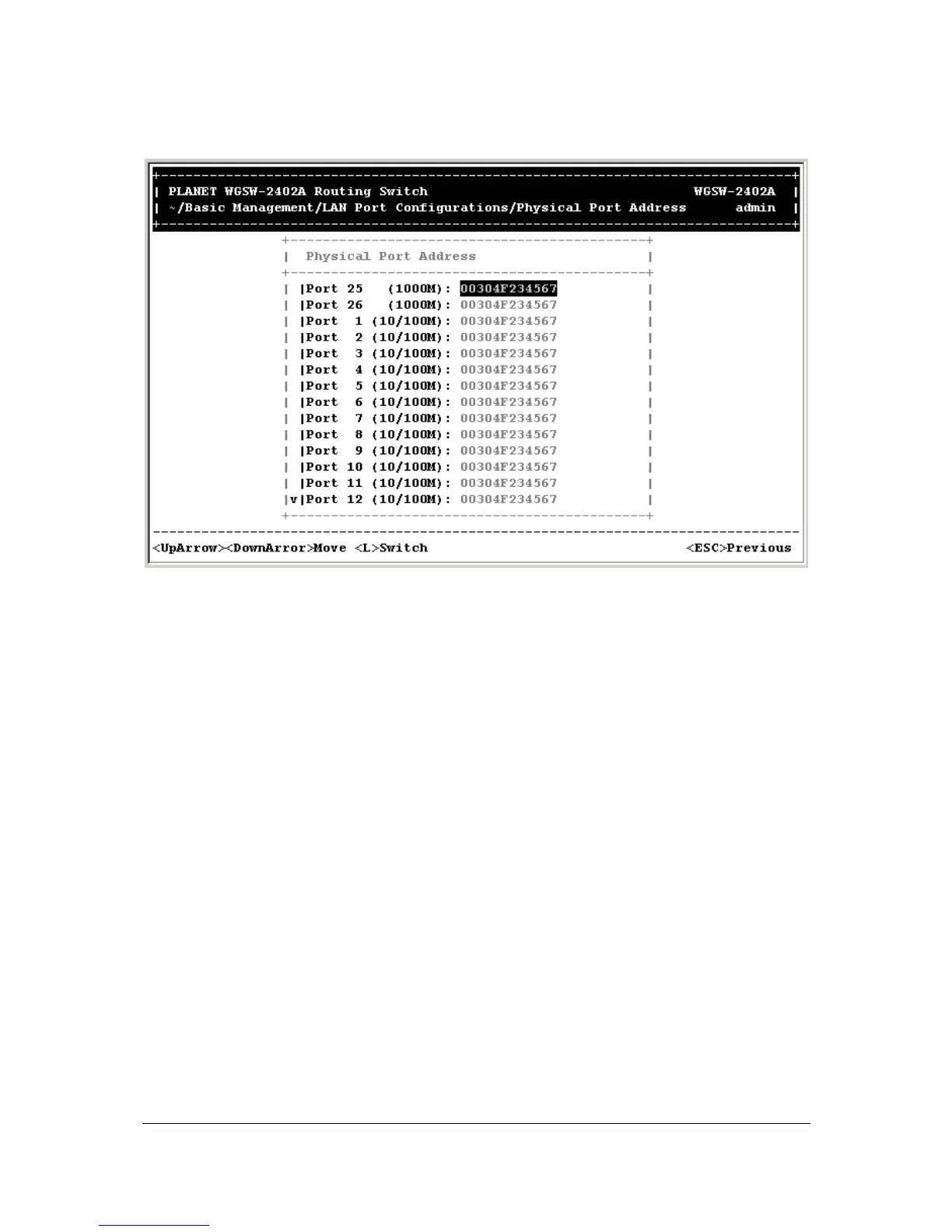

Figure 4-20
2. Use the Up Arrow and Down Arrow keys to scroll up and down the list.
3. When you finish, press the Esc key to return to the LAN Port Configurations screen.
4.3.2.4 Returning to the Basic Management Screen
After completing the LAN port configuration activities, press the Esc key to exit the LAN Port
Configurations screen and return to the Basic Management screen. Select another option from the
Basic Management screen or press Esc to return to the Switch Management screen.
4.3.3 Console Port Configuration
If you select Console Port from the Basic Management screen, the Console Port Configurations
screen in Figure 4-21 appears, with the Baud Rate value highlighted.

Planet WGSW-404 Specifications

General

Brand	Planet
Model	WGSW-404
Category	Network Router
Language	English
