- 265 -

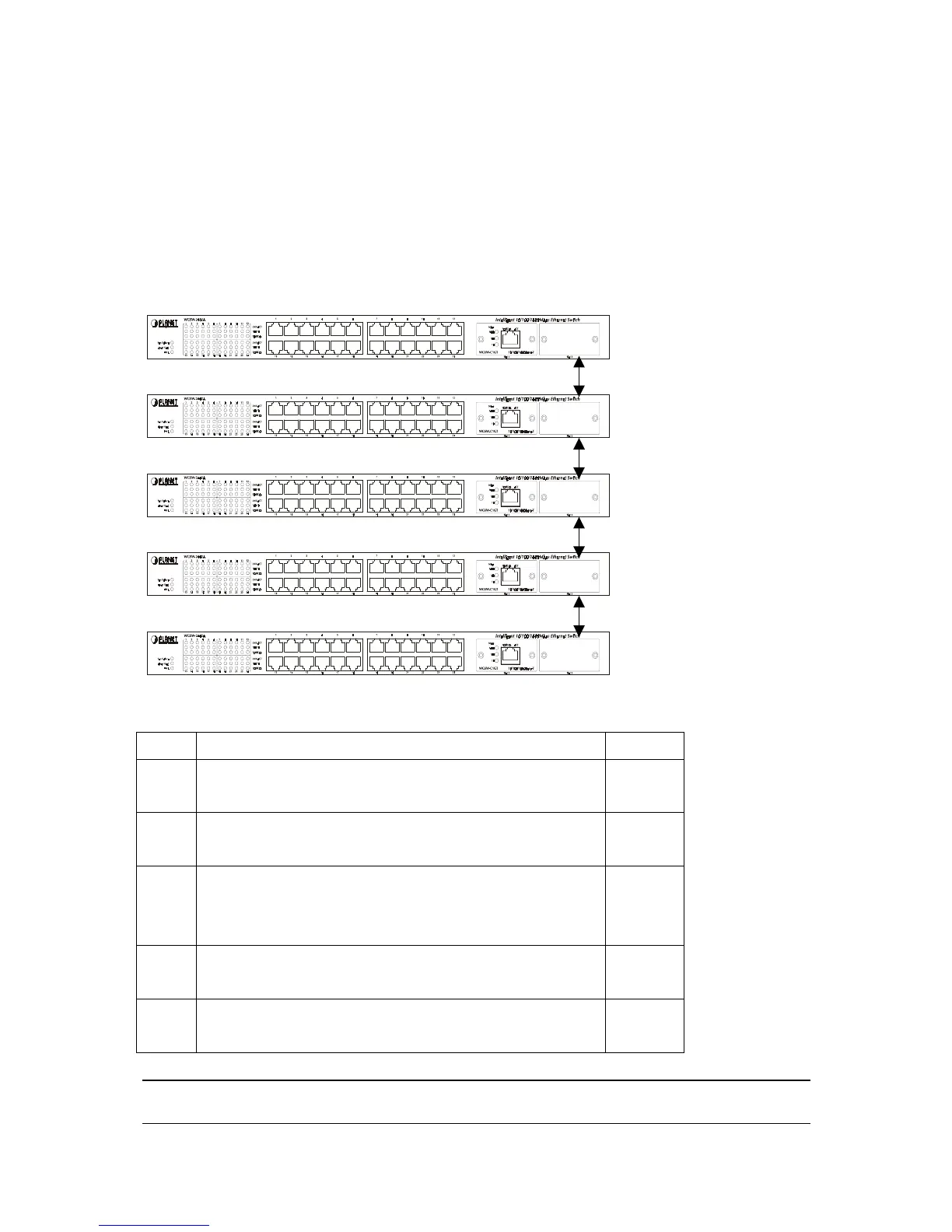

Appendix B Example of Stacking Switches
There are 5 switches to be stacked together. Routing function between VLANs is not required. The
Switches from top to down are A~E.
Switch Configuration Remark
A Switch ID=4, Stack ID=1, Stack port = 25, Stack size=5
No IP for all VLANs
B Switch ID=2, Stack ID=1, Stack port = 25, 26, Stack size=5
No IP for all VLANs
C Switch ID=1, Stack ID=1, Stack port = 25, 26, Stack size=5
No IP for all VLANs
Stack IP Settings=192.168.1.1
Master
D Switch ID=3, Stack ID=1, Stack port = 25, 26, Stack size=5
No IP for all VLANs
E Switch ID=5, Stack ID=1, Stack port = 25, Stack size=5
No IP for all VLANs
Note: Please use the “Stack Port Mapping” menu to check all the Switches are
To Next Page
