- 163 -

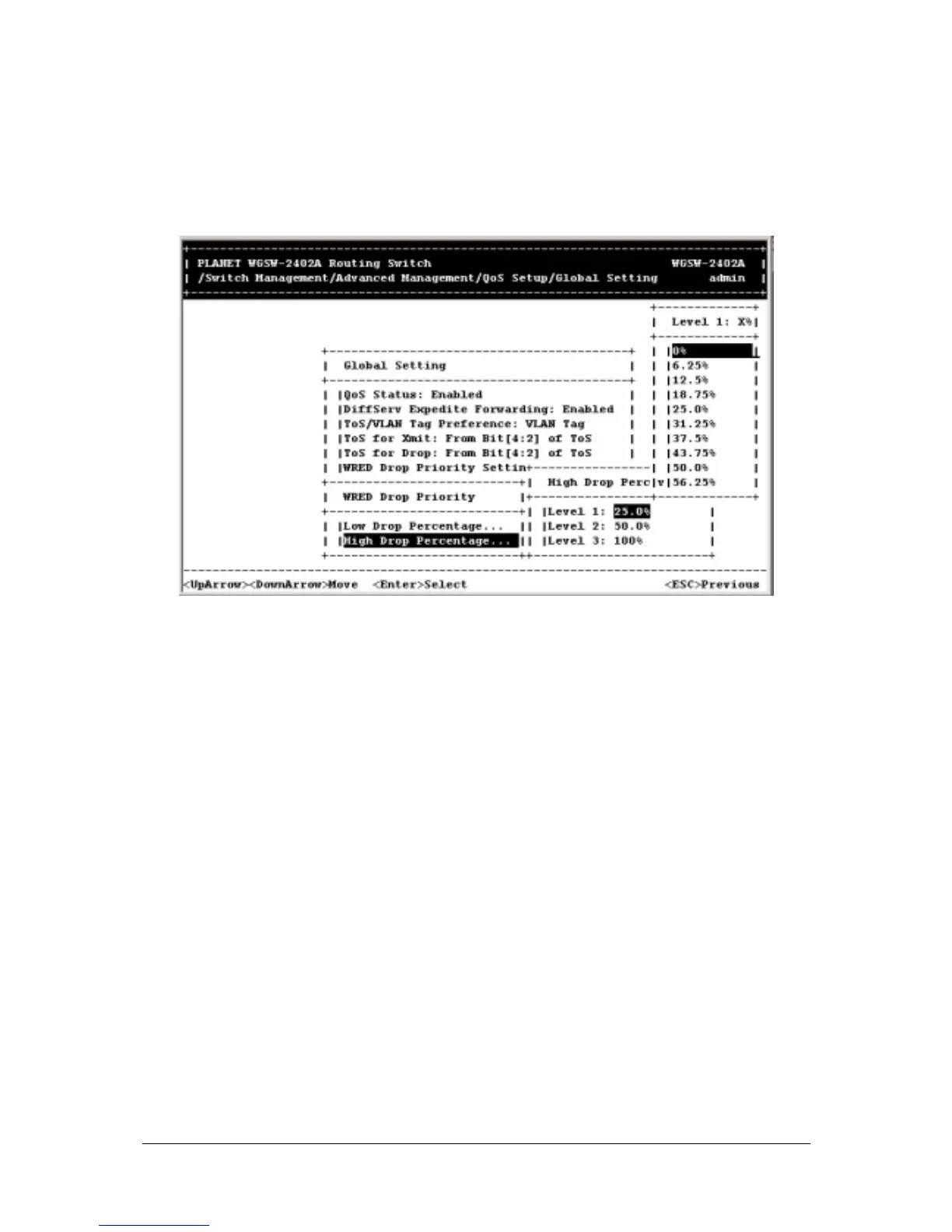

16. Level 3 remains fixed at 100%. To change the percentage for level 1 or 2, highlight Level 1 or
Level 2 and press Enter. The following options appear.
F
IGURE
5-141
17. Highlight the appropriate percentage and press Enter.
18. Press the Esc key to return to the WRED Drop Priority screen.
19. Press the Esc key to return to the QoS screen.
20. Press Esc until you return to the desired screen.
5.15.2.2 Specifying TCP/UDP Logical Port Settings
To set logical port settings, highlight Logical Port from the QoS menu, and then press the Enter key.
The Logical Port menu appears.
