- 158 -
For rate co
ntrol parameters, refer to
Section 5.15.2.6 “Rate Control”.
5.15.2.1 Setting Global Settings
To set global settings:
1.
From the QoS menu, highlight
Global Settings
and press th
e Enter key. The Global Setting menu

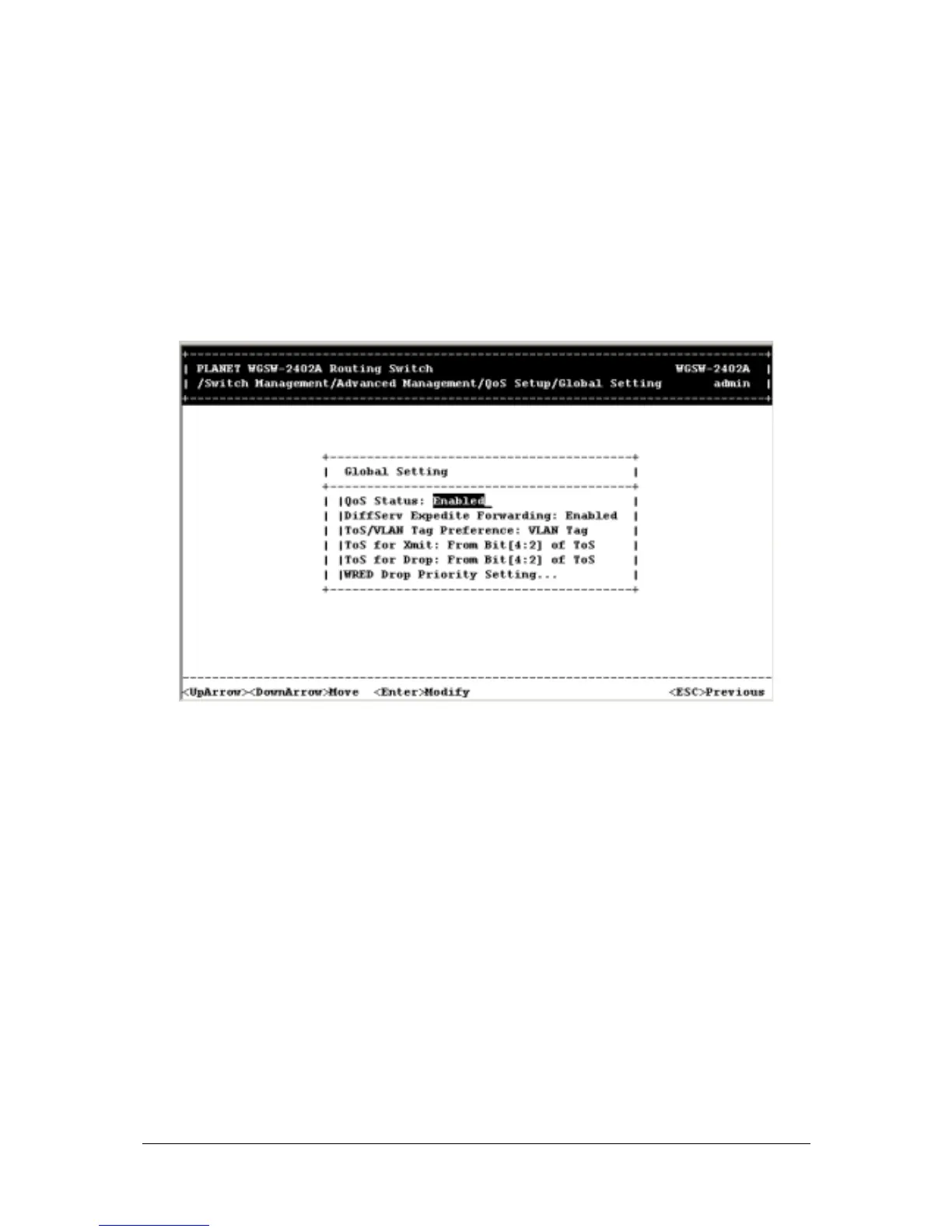

appears.
F
IGURE
5-133
2. Press
the
Enter
key. The QoS menu appears.
165
167
