2.2.3 Rear Panel of WGSW-404

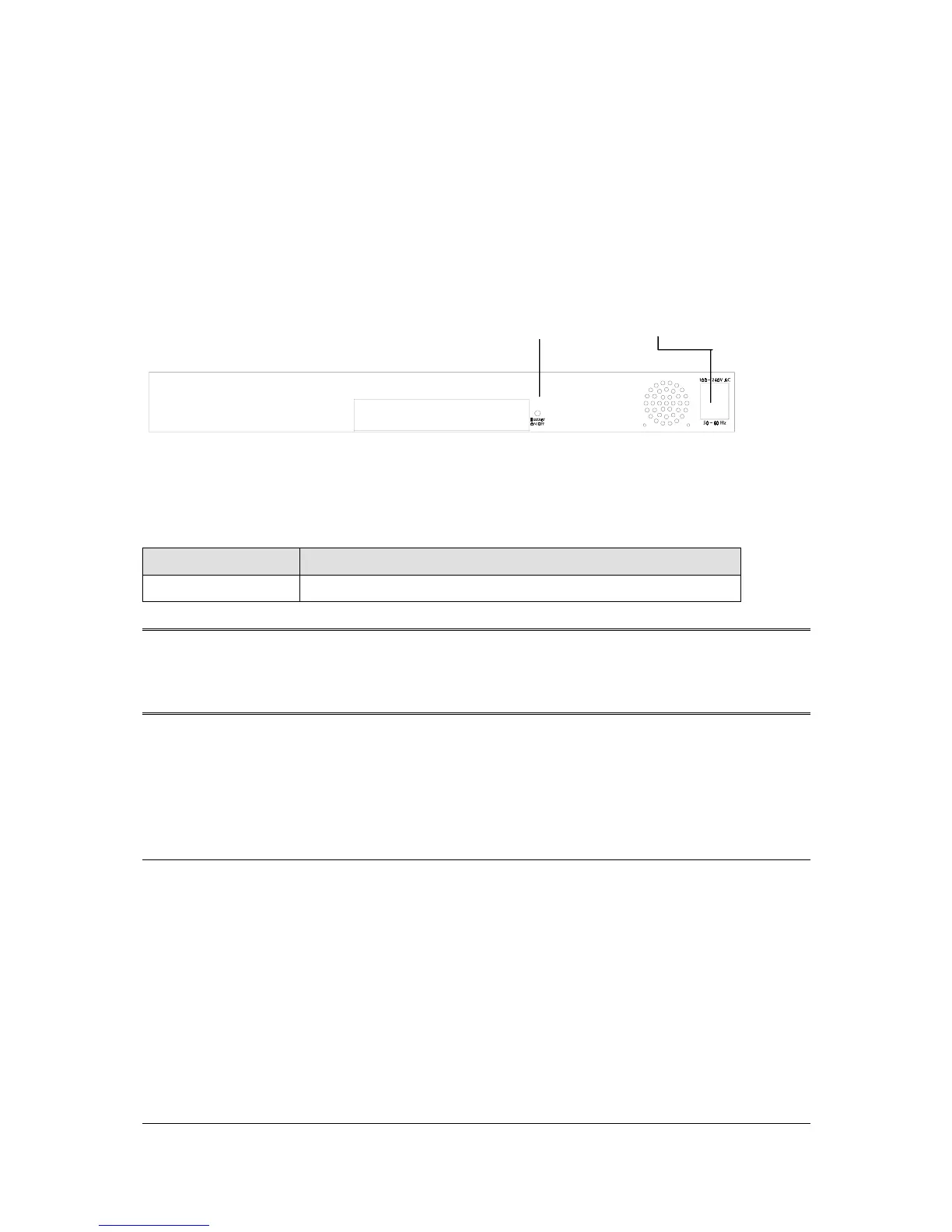

The rear panel of WGSW-404 has a power connector, a Buzzer button and a console port. Figure 2-3
shows a rear panel of the Switch. Table 2-5 explains the function of the ports shown in the Figure 2-4.
F
IGURE
2-5 R
EAR
P
ANEL OF
WGSW-404
Buzzer Button Power
T
ABLE
2-8 P
ORT
F
UNCTION OF THE
R
EAR
P
ANEL
Port Function
Power
This is where you will connect the AC power cord.
Note: To depress the Buzzer button will change the reaction of the buzzer. If the button is set to on,
the buzzer will ring as the system is under the status of overheat. Set to off, the buzzer will not
work even if the system overheats.
2.3 Module Hardware Description
2.3.1 Gigabit Expansion Module
Figure 2-6 show that front panel of gigabit expansion module. Table 2-9 and Table 2-10 show that
modules status LEDs.
