- 61 -

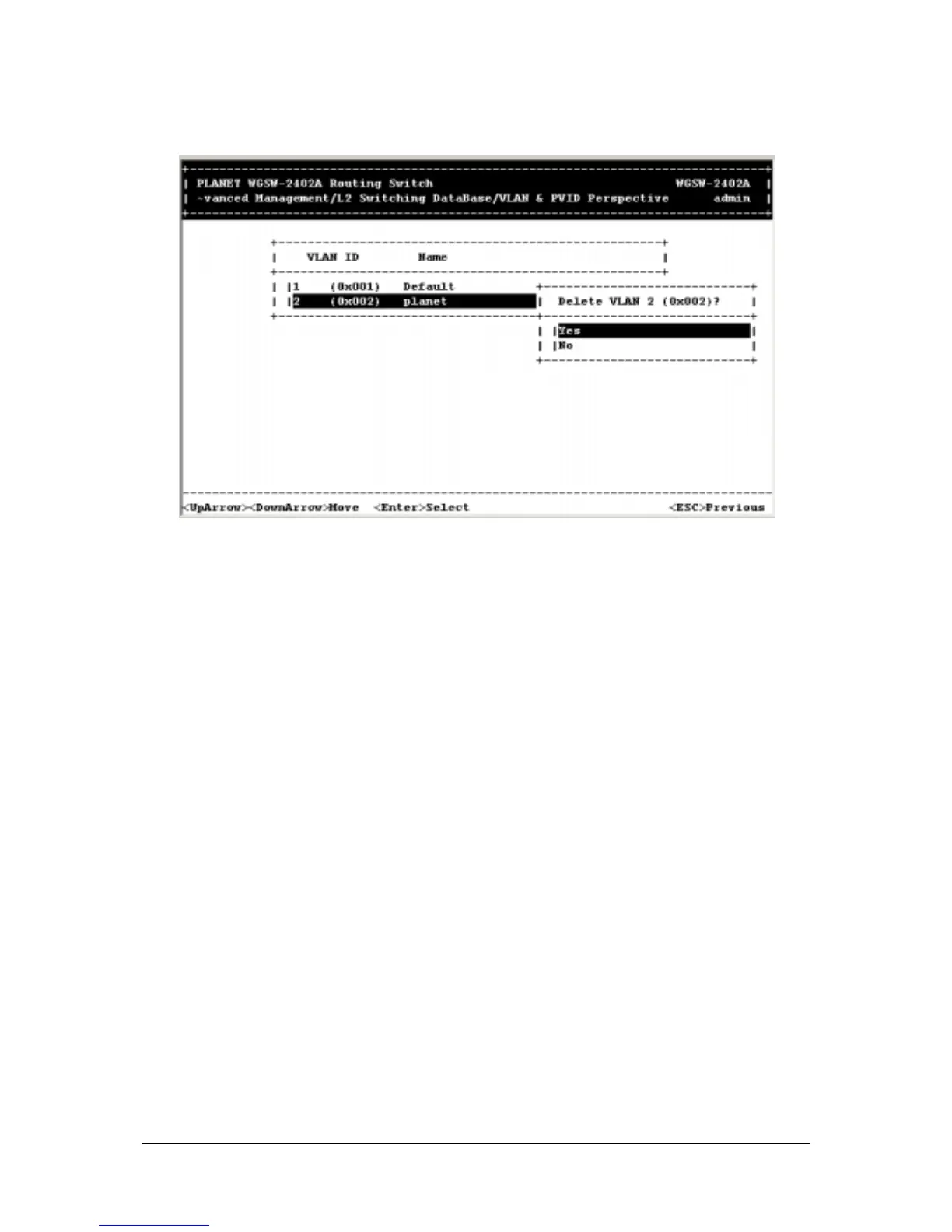

F
IGURE
5-15
3. With Yes highlighted, press the Enter key to delete the VLAN ID. Or to retain it, press the Esc key
or highlight No and press Enter.
5.2.2.4 Viewing VLAN Activities
The following procedure describes how to use the VLAN Perspective screen to view activities for a
particular VLAN. Using this procedure, you can view:
Active ports.
Active MAC addresses associated with a VLAN.
A transient address, if any.
Filtering and port information.
To view VLAN activities:
1. From the VLAN Perspective screen in, highlight an existing VLAN and press the Enter key. The
VLAN Info screen appears, with the highlight on VLAN Activities.
