- 62 -
F
IGURE
5-16
2.

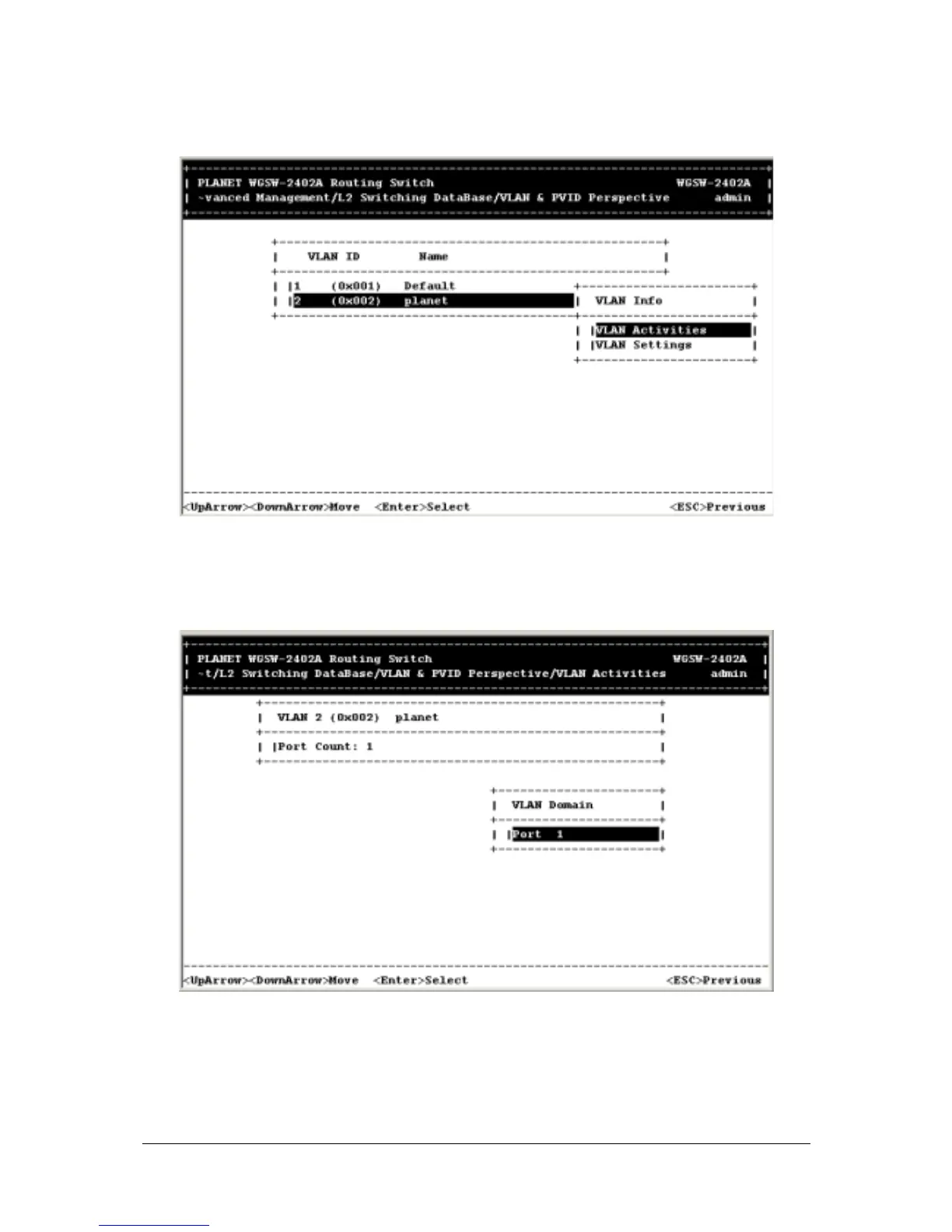

Press the Enter key. A screen similar to the following a
ppears.
F
IGURE
5-17
This screen shows all active VLAN domains for t
he VLAN you selected. You can use the Up Arro
w and
Down Arrow keys to scroll
through the list of dom
ains associated with the
selected VLAN. When you
finish performing VLAN activities, press the E
sc key until you return to the desired screen.
