Planet WGSW-404 User Manual

- 11 -

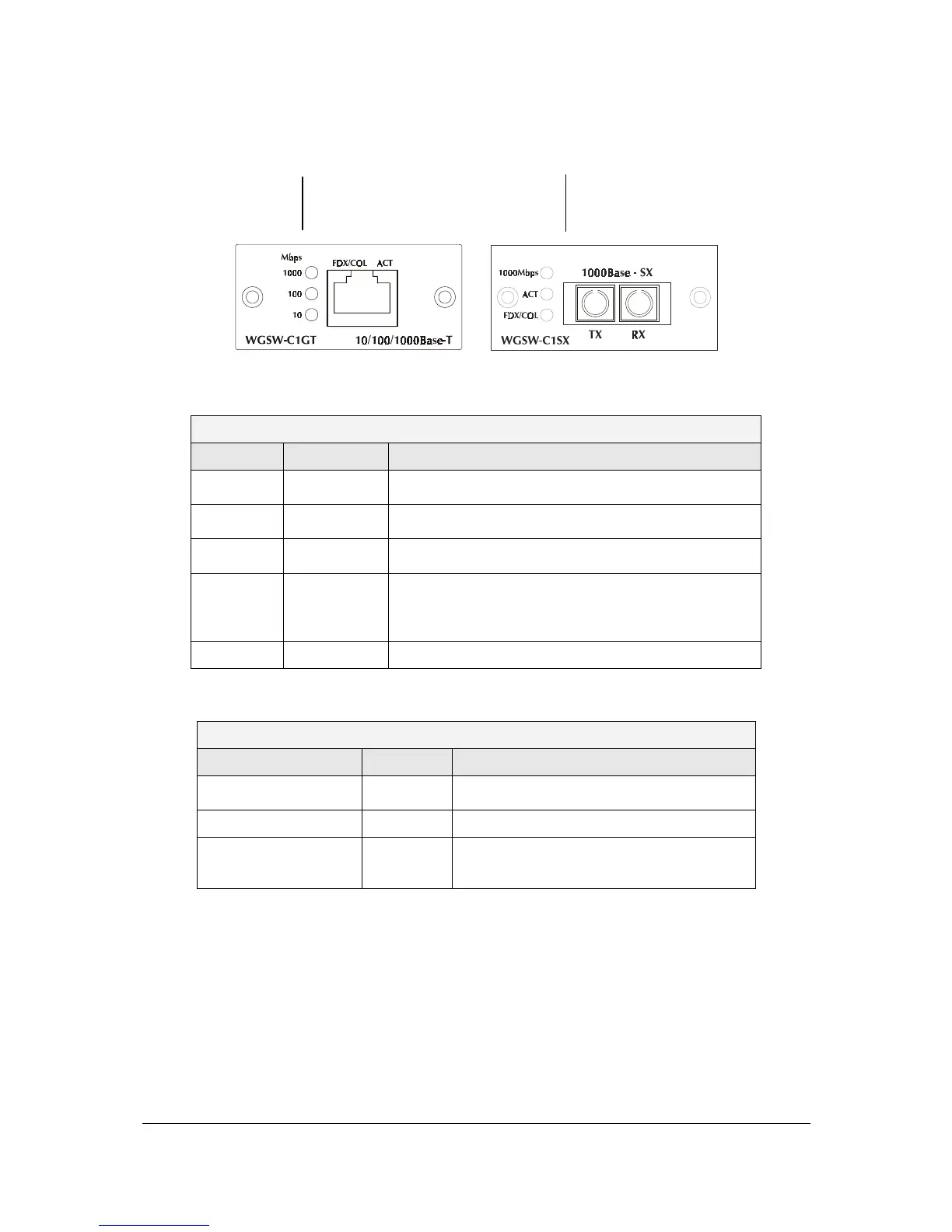

F
IGURE
2-6 G
IGABIT
E
XPANSION
M
ODULE
WGSW-C1GT Module Status LEDs WGSW-C1SX Module Status LEDs
T
ABLE
2-9 WGSW-C1GT/SX S
TATUS
LED
S
WGSW-C1GT
LED Color Function
1000
Green
Lights to indicate that the Switch is sending or receiving
data at 1000 Mbps.
100
Green
Lights to indicate that the Switch is sending or receiving
data at 100 Mbps.
10
Yellow
Lights to indicate that the Switch is sending or receiving
data at 10 Mbps.
FDX/COL
Yellow
Lights green to indicate that the port is operating in
full-duplex mode.
Blinks orange periodically to indicate that the connection
is experiencing collisions.
Act
Green
Lights to indicate that the connection is acting.
T
ABLE
2-10 WGSW-C1SX S
TATUS
LED
S
WGSW-C1SX
LED Color Function
1000
Green
Lights to indicate that receiver of fibre port is in
normal optical input levels.
Act
Green
Lights to indicate that the connection is acting.
FDX/COL
Yellow
Lights to indicate that the port is operating at
full duplex. This port does not support half
duplex.
2.3.2 100Base-FX Expansion Module
Figure 2-5 show that front panel of 100Base-FX expansion module. Table 2-7 show that modules
status LEDs.
