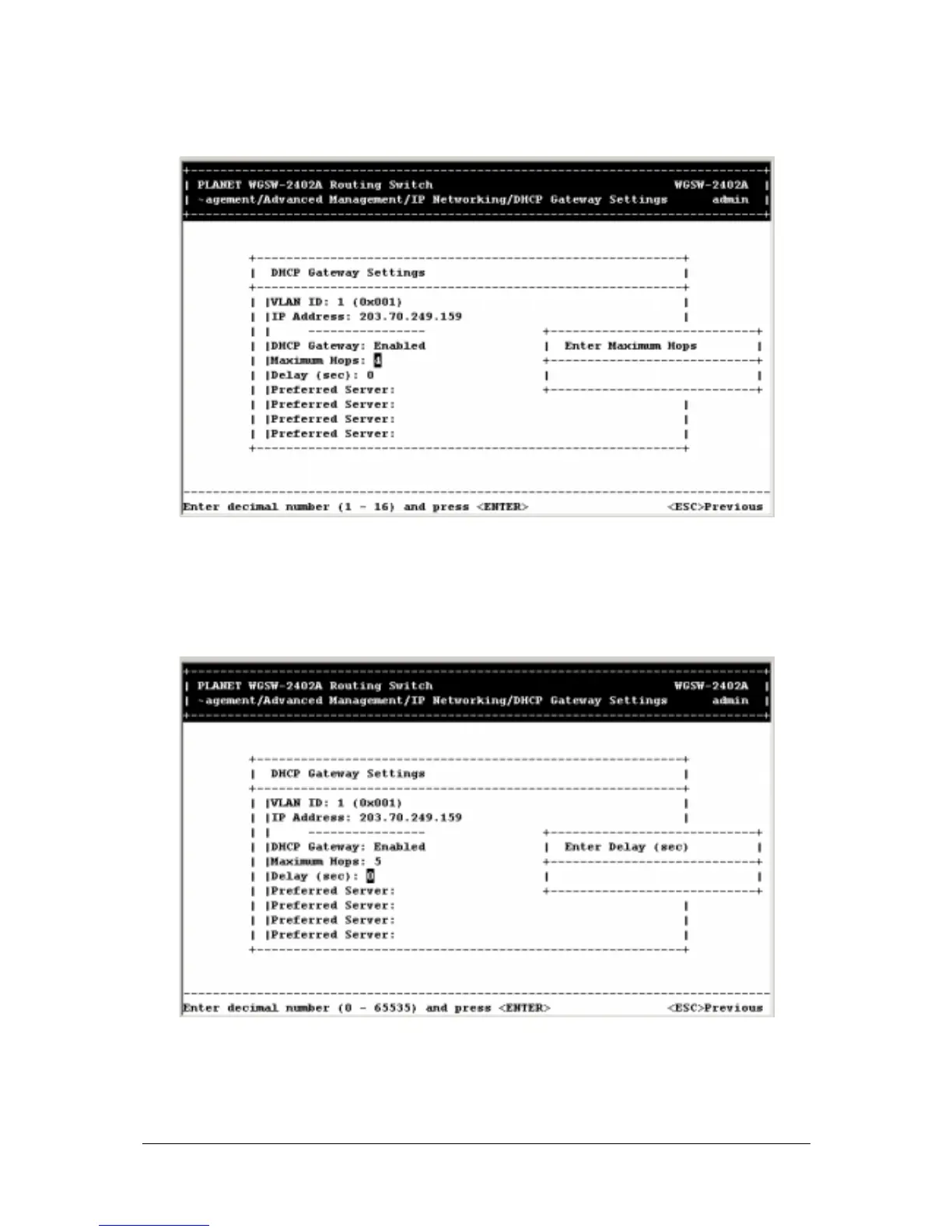

- 99 -
F
IGURE
5-63
7.
Press the Down Arrow key
and press Enter to configure th
e delay. When the following screen
appears, type the delay, in se
conds, and press Ente
r.
F
IGURE
5-64
8.
Press the Down Arrow key and press
Enter to
specify the preferred server. When the following
screen appears, type the IP address, and pre
ss Enter.
