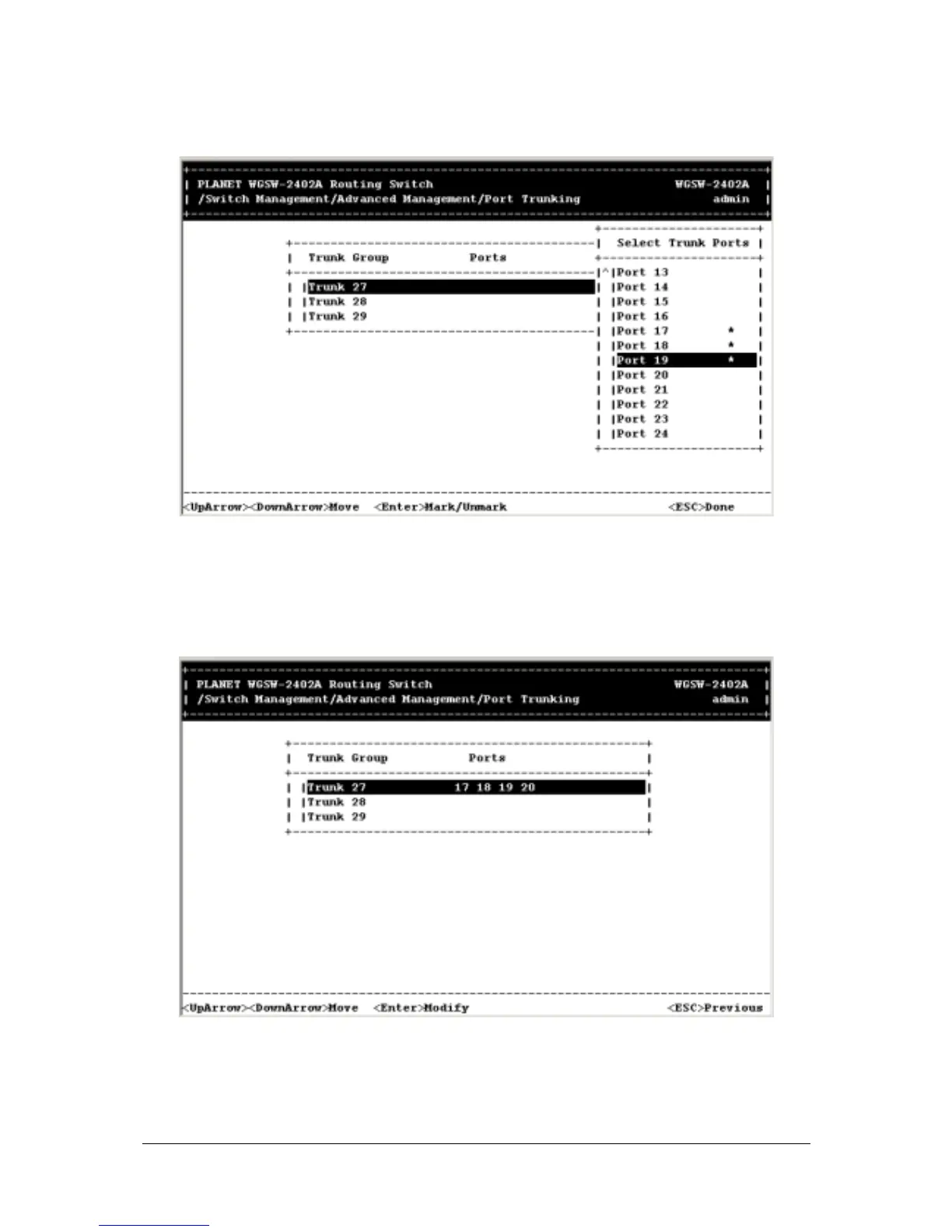

- 145 -
F
IGURE
5-124
5. Press
Esc
when you finish selecting ports. The T
runk
Group will present the selected ports as
shown be
low
.
F
IGURE
5-125
6.
To set other Trunks, repeat step 1~ 5 to config
ure.
7.
Press ESC to go back to the Advanced Management screen.
