- 180 -

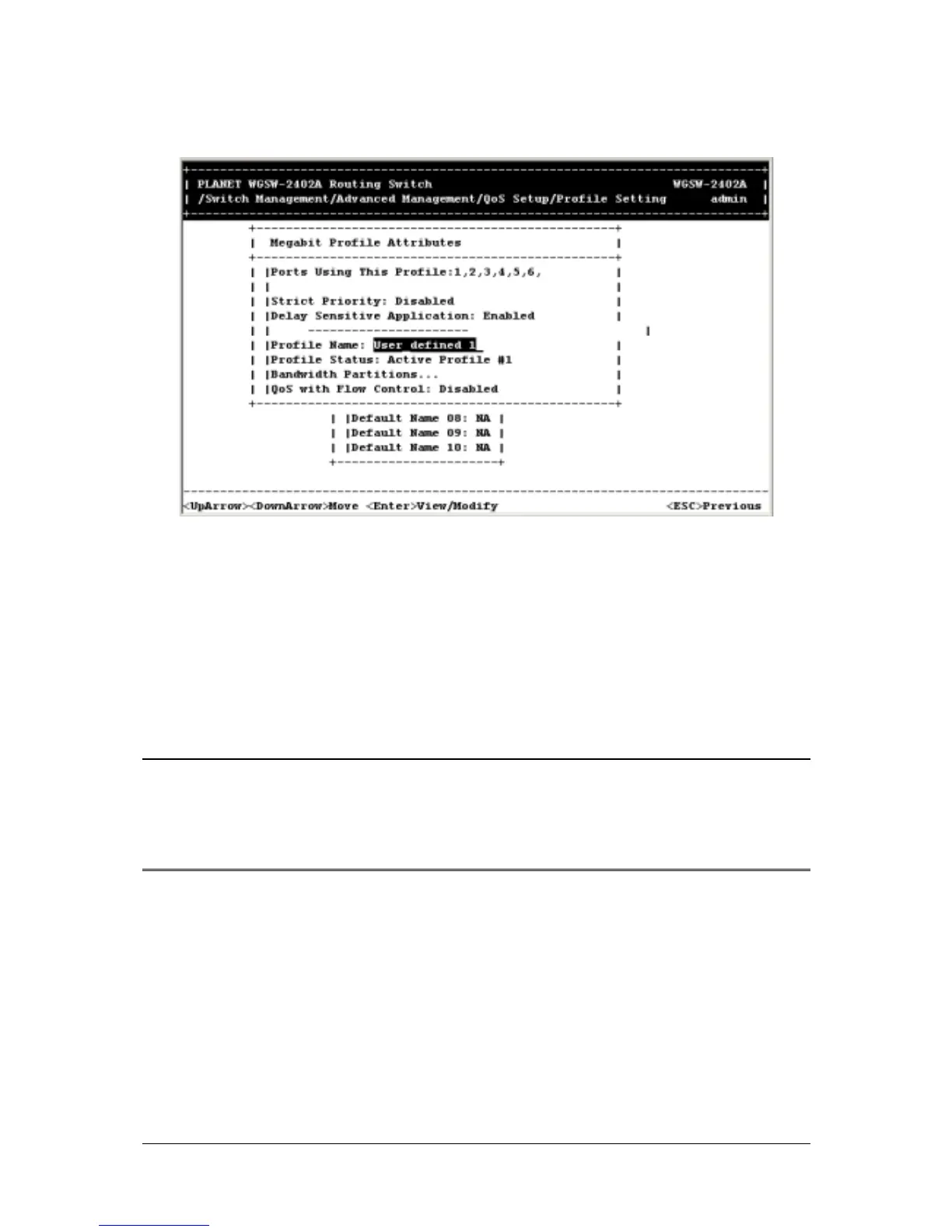

F
IGURE
5-165
4. Ports Using This Profile displays all the ports that are currently using this profile for their QoS
scheduling algorithm.
5. To change the bandwidth partition for this profile, use the Down Arrow key to highlight Bandwidth
Partitions and press the Enter key. When the BW Partitions screen appears, use the Down Arrow
key to highlight a partition and press the Enter key. The bandwidth you entered appears next to
Bandwidth Partitions.
Note: Bandwidth Partition is more accurate for profiles when Delay Sensitive Application is
disabled. For profiles that have Delay Sensitive Application enabled, Bandwidth Partition is
provided for reference purposes only, because the packet is dispatched based on the
delay-bound algorithm.
