- 217 -
F
IGURE
7-5
2.

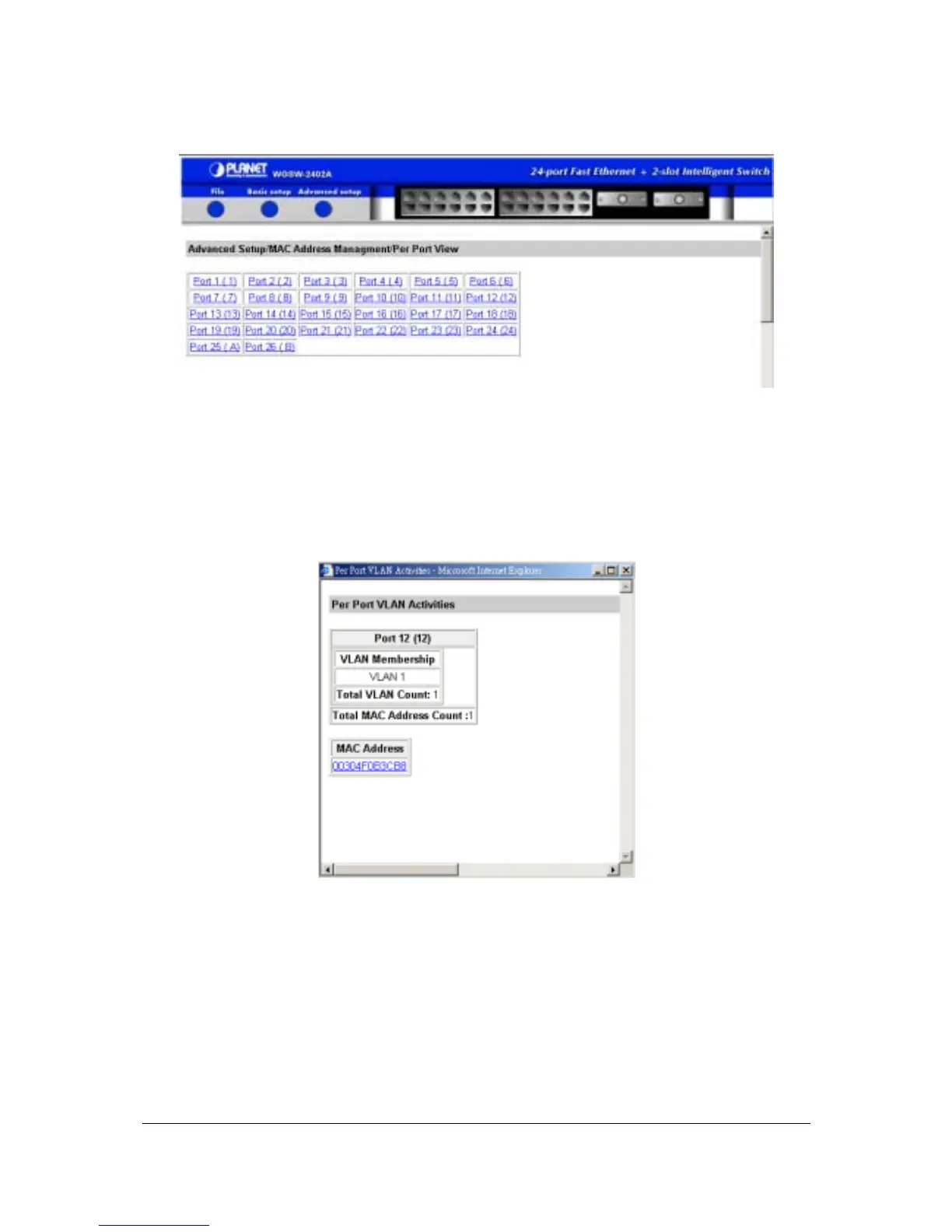

To obtain a per-port view, click a port. A Per Port
VLAN Activities window similar to the followin
g
appears.
F
IGURE
7-5
3.
If one or more MAC addresses appear in the window (a
s in the example above), click it to view its
settings. A MAC View window simila
r to the following appears.
