- 250 -
5.

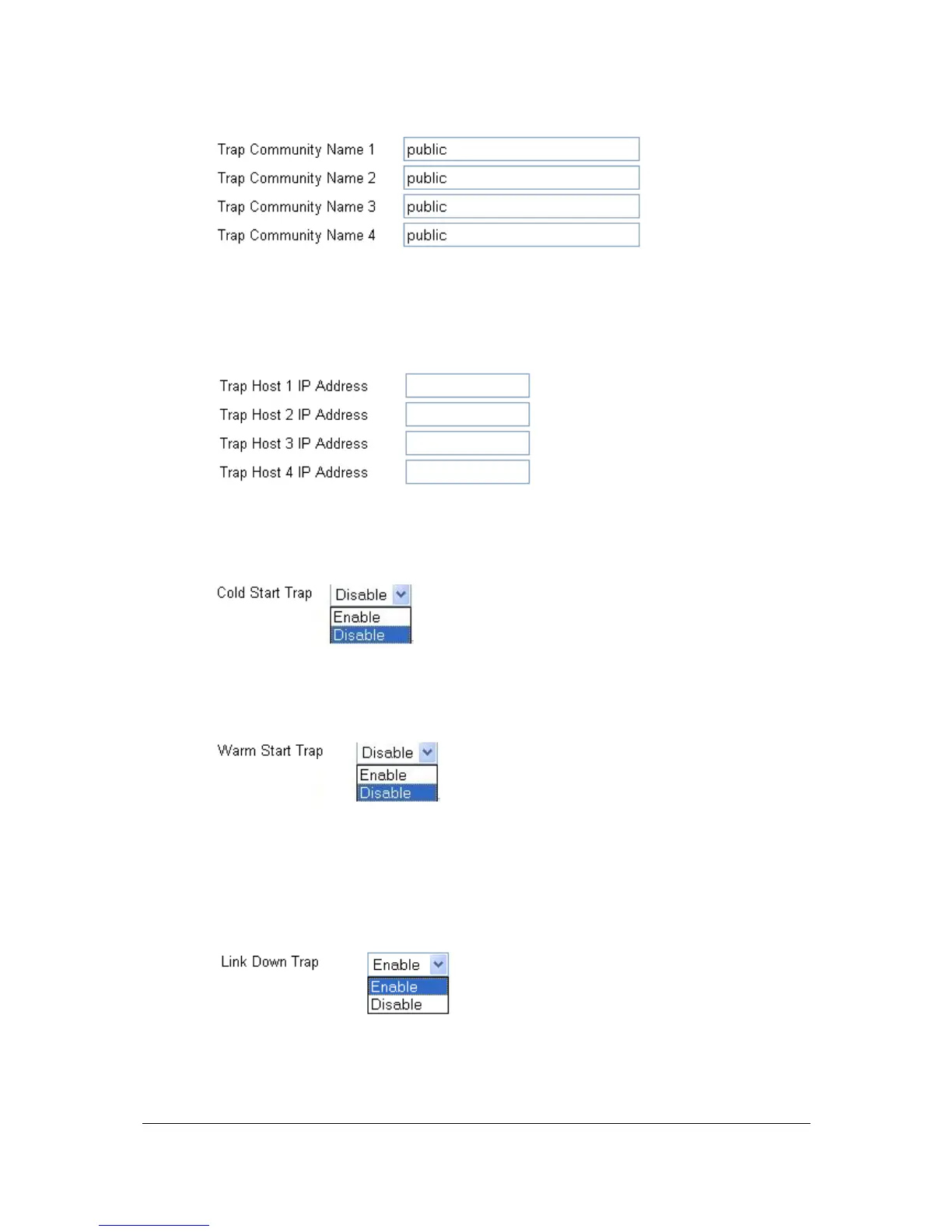

Use the four
Trap Host
text boxes to type up to four IP addres
ses for trap hosts
(one trap host per
text box). The address consists of numb
ers
separated by periods. For example: 129.32.0.11
6. For
Cold Start Trap
, enable or disable it.
7. For
Warm Start Trap
, enable or disable it.
8. For
Link Down Trap
, enable or disable it.
9. For
Link Up Trap
, enable or disable it.
257
