- 256 -
F
IGURE
7-58

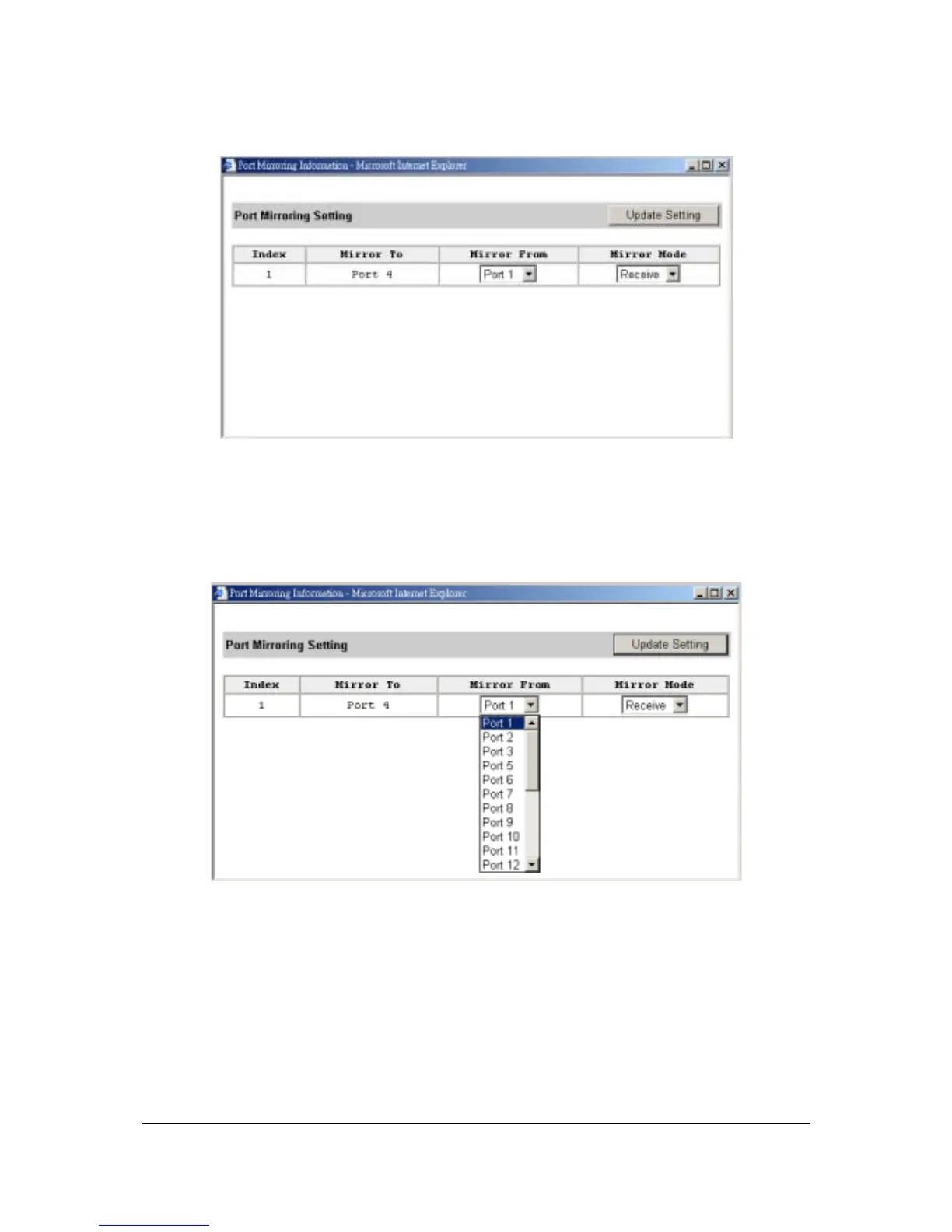

4. Use
the
Mirror From
drop-down list to click a “mirror from” por
t. Data traffic from this port will mirror
to the one shown in the
Mirror To
colu
mn.
F
IGURE
7-59
5. Under
Mirror Mode
, specify whether the “mirrored from” po
rt will forward
received or transmitted
data to “mirror to” port.
263
