Planet WGSW-404 User Manual

- 59 -

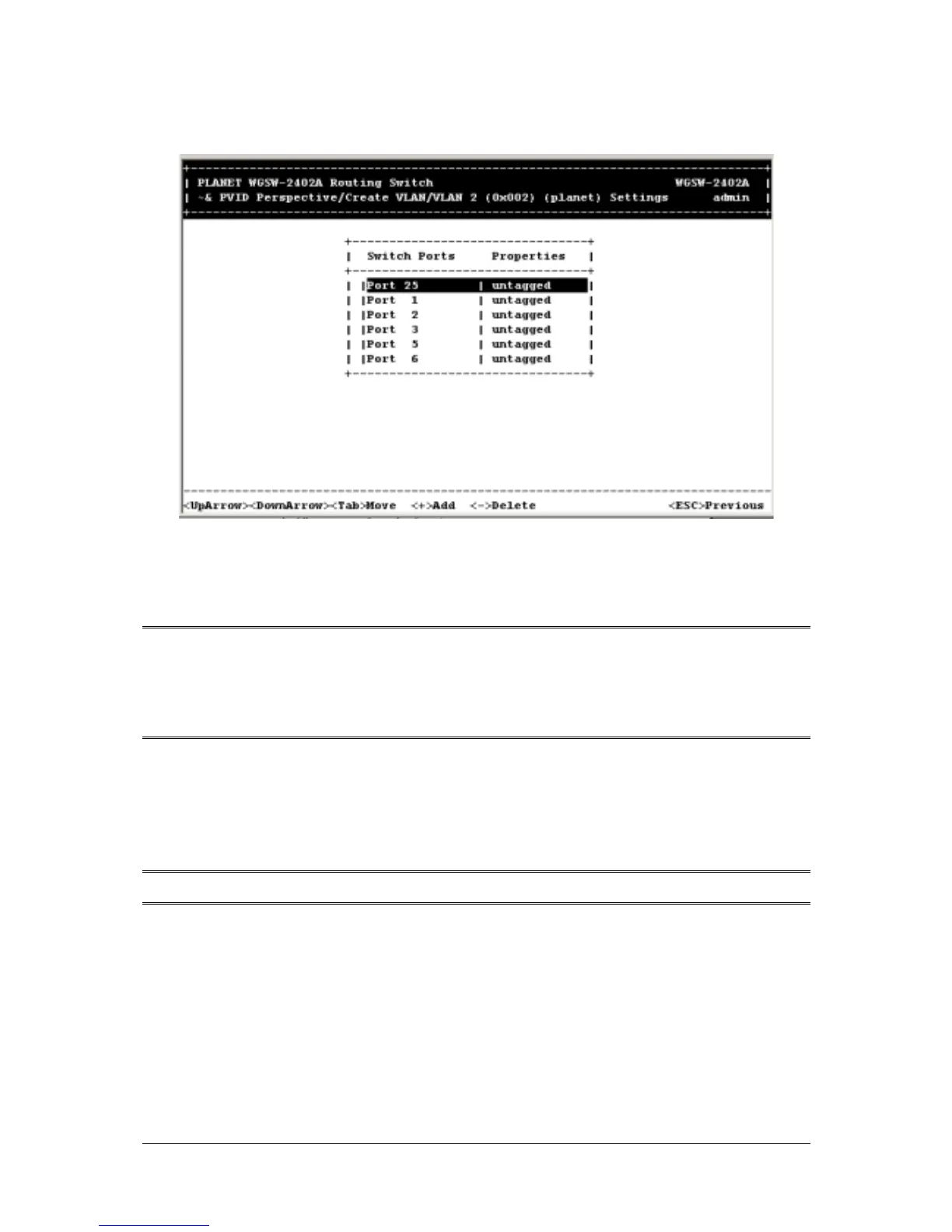

F
IGURE
5-13
6. If you added untagged ports and want to now add tagged ports or forbidden ports, or vice versa,
repeat steps 1 through 5 and in step 2 select the appropriate port option.
Note: To delete a switch port in the screen above, highlight the port and press the - (hyphen) key. A
precautionary prompt does not appear before you delete a switch port, so be sure you do not
need the port before you delete it. You can also hold down the Shift key and press + to add
ports.
7. Press Esc to return to the VLAN Perspective screen. The VLAN IDs and names you added appear
in the VLAN Perspective screen. In the screen on the next page, for example, the “planet” VLAN
have been added.
Note: To change a port’s property, first delete the port; then add the port with the new property.
8. Select another option from the VLAN Perspective screen or press Esc to return to the L2 Switching
DataBase screen.
