Planet WGSW-404 User Manual

- 66 -
port you select. (To deselect it, press Enter again to remove the asterisk.)
To configure all ports, highlight All Ports and press Enter.
c. Press Esc. The port(s) you selected appear in the previous screen.
To select tagged ports:

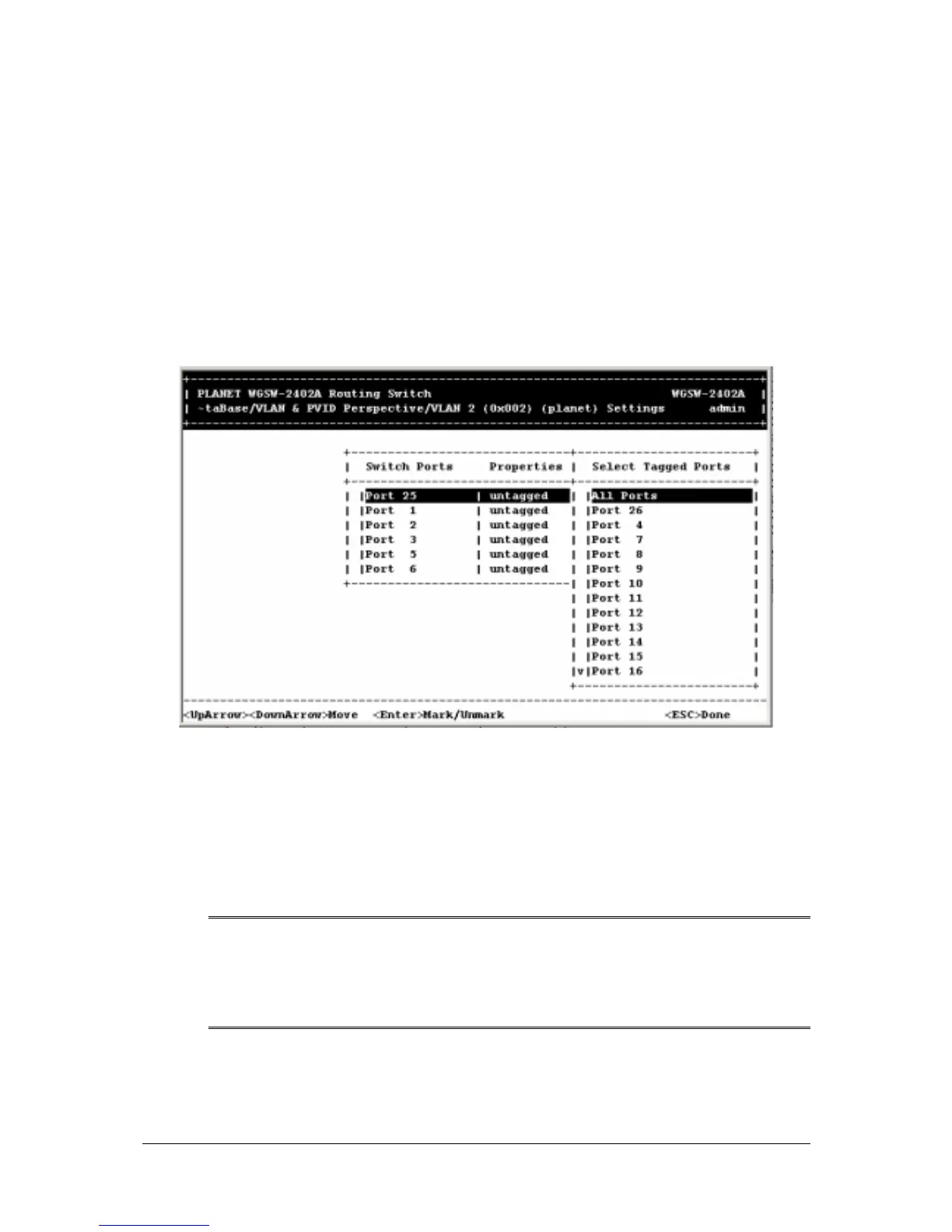

a. Highlight Tagged Ports and press Enter. The Select Tagged Ports screen appears, with a list
of the tagged ports.
F
IGURE
5-22
b. To configure an individual port, highlight it and press Enter. An asterisk appears next to each
port you select. (To deselect it, press Enter again to remove the asterisk.)
To configure all ports, highlight All Ports and press Enter.
c. Press Esc. The port(s) you selected appear in the previous screen.
Note: Even though you have specified the port to be tagged port for the VLAN ID, the Switch
will still untagged the packets if the PVID setting is the same as the VLAN ID. It is
strongly recommended to organize your VLANs and different switches while setting
up the network.
To select forbidden ports:
a. Highlight Forbidden Ports and press Enter. The Select Forbidden Ports screen appears,
with a list of the tagged ports.
