- 68 -
VLAN-untagged packets. The switch will also un-tag the VLAN ID from outgoing packets if the port’s

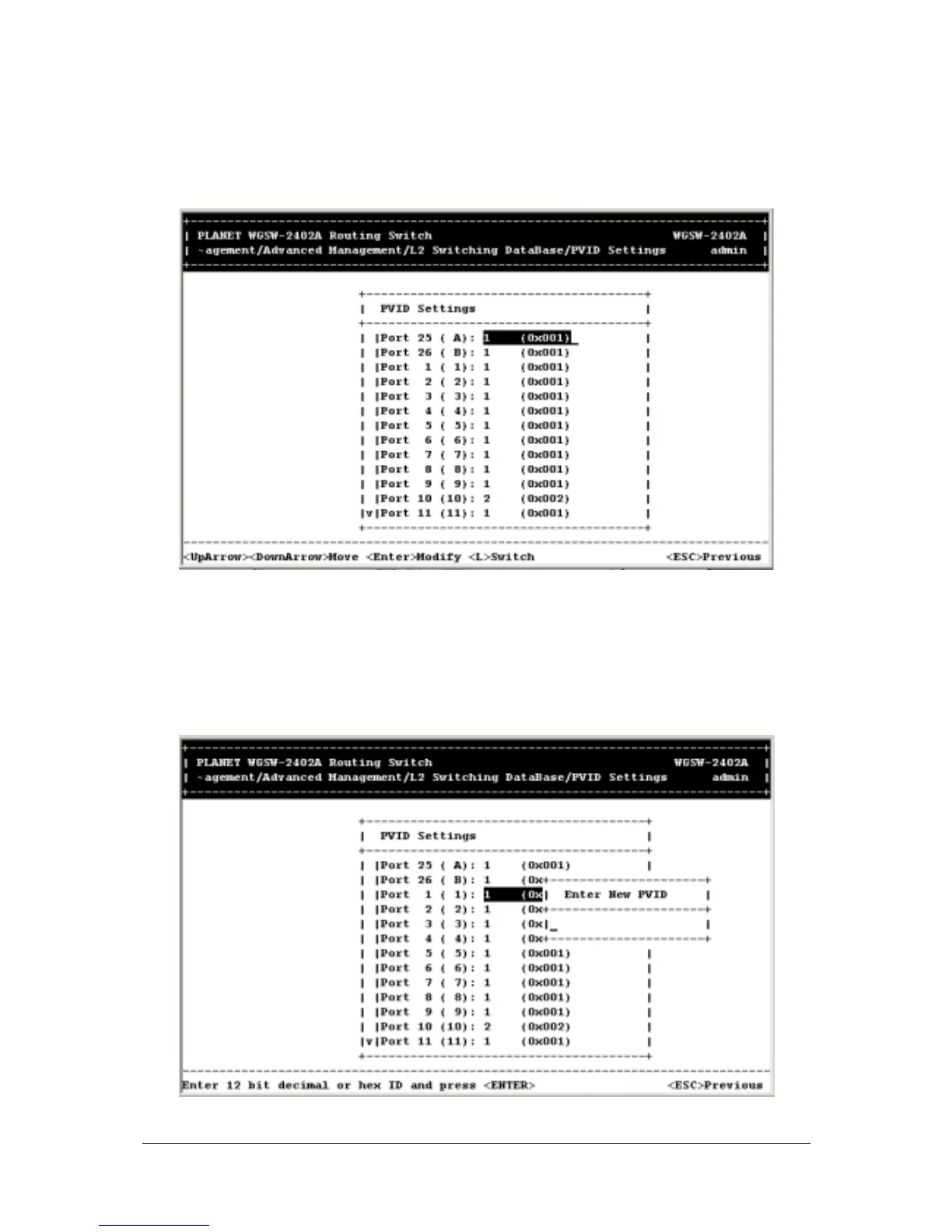

PVID is the same as the outgoing packet’s VLAN ID. If you want to configure the PVID, highlight PVID
setting from the VLAN & PVID Perspective screen and press Enter. The following screen will appear:
F
IGURE
5-24
The following steps will show you how to set the PVID.
1. Highlight an individual port you want to configure and press Enter. The Enter New PVID column
will appear next to PVID Settings screen.
F
IGURE
5-25
