- 76 -
F
IGURE
5-33
1.

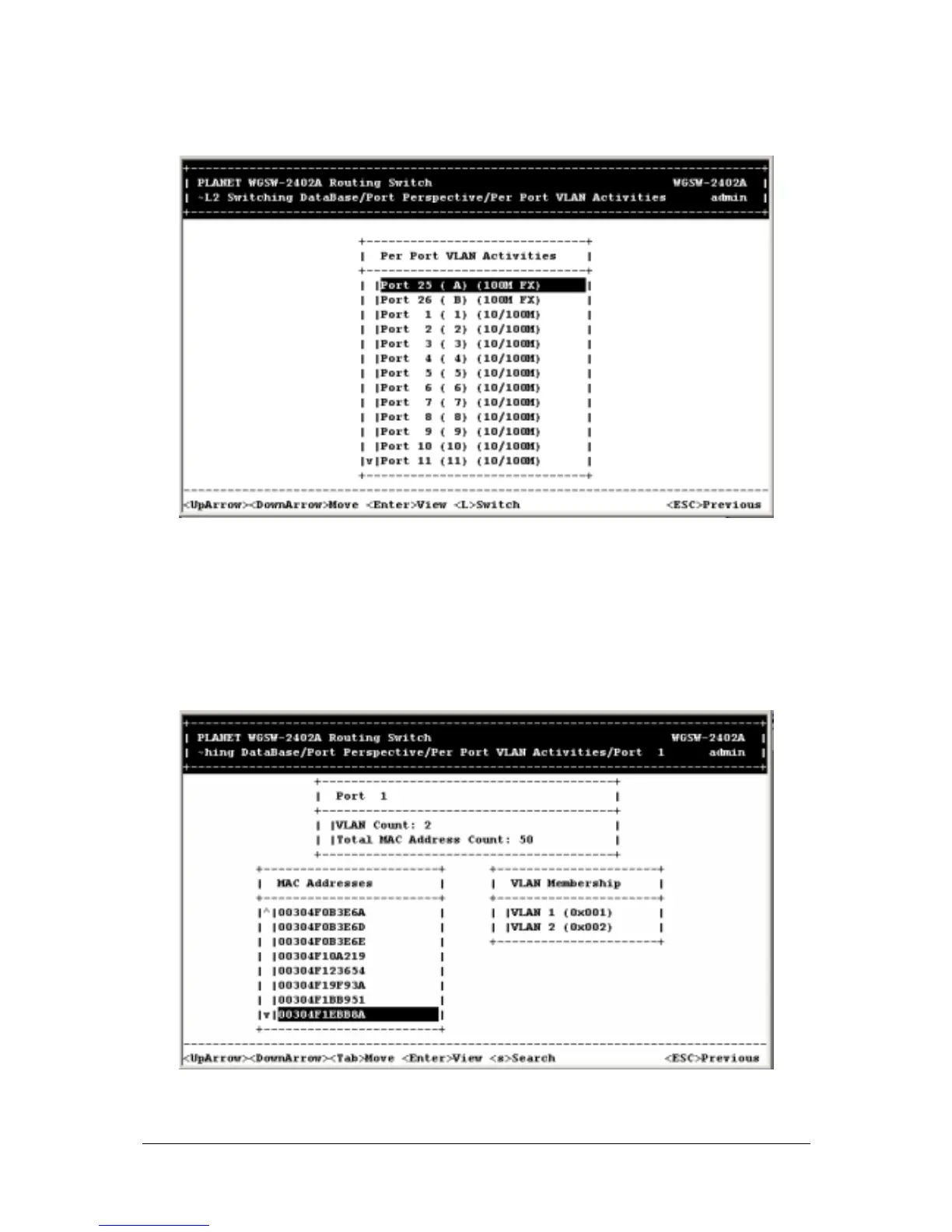

Use the Up Arrow and Down Arrow keys to highlight the port number wh
ose corresponding VLANs
activities you want to view.
2.
Press the Enter key. A screen similar to the following appears, with a list of the MAC addresse
s for
the selected VLAN and the correspondi
ng VLAN memberships.
F
IGURE
5-34
83
85
