ADJUSTMENT

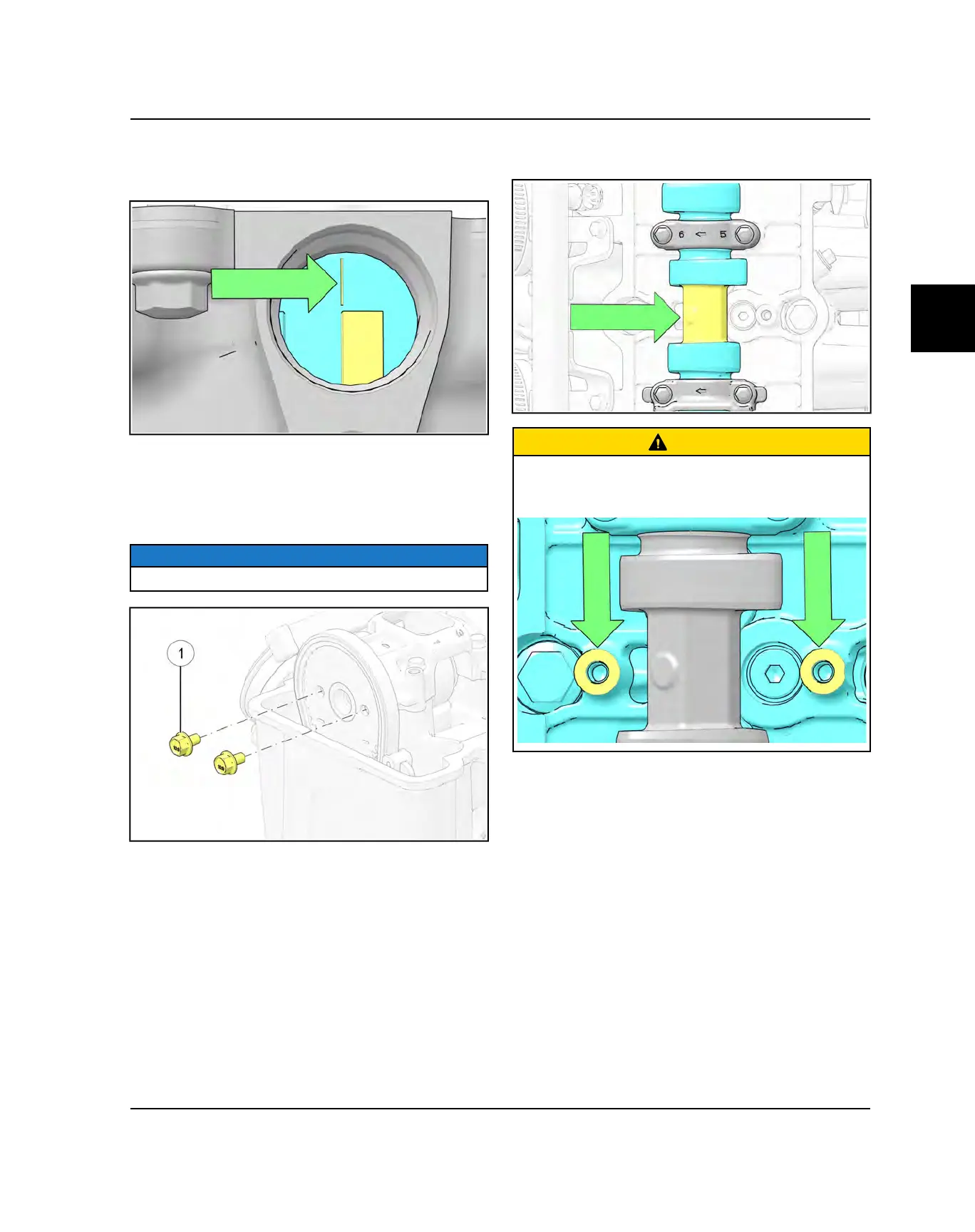

1. Ensure the alignment mark is visible through the CPS
hole.
2. Remove the chain tensioner. Refer to Cam Chain
Tensioner Service page 3.37.
3. Remove the two fasteners
q
securing the camshaft
sprocket to the camshaft and slide the sprocket off
the camshaft.
NOTICE
Fasteners are one time use. Discard after removing.
4. When rotating the camshaft in the next step, use an
open end wrench or crows foot on the center section.
CAUTION
DO NOT allow the wrench to contact the valve cover
mounting bosses on the cylinder head surface. Short
turns are required to avoid damaging the cylinder head.
