7.33

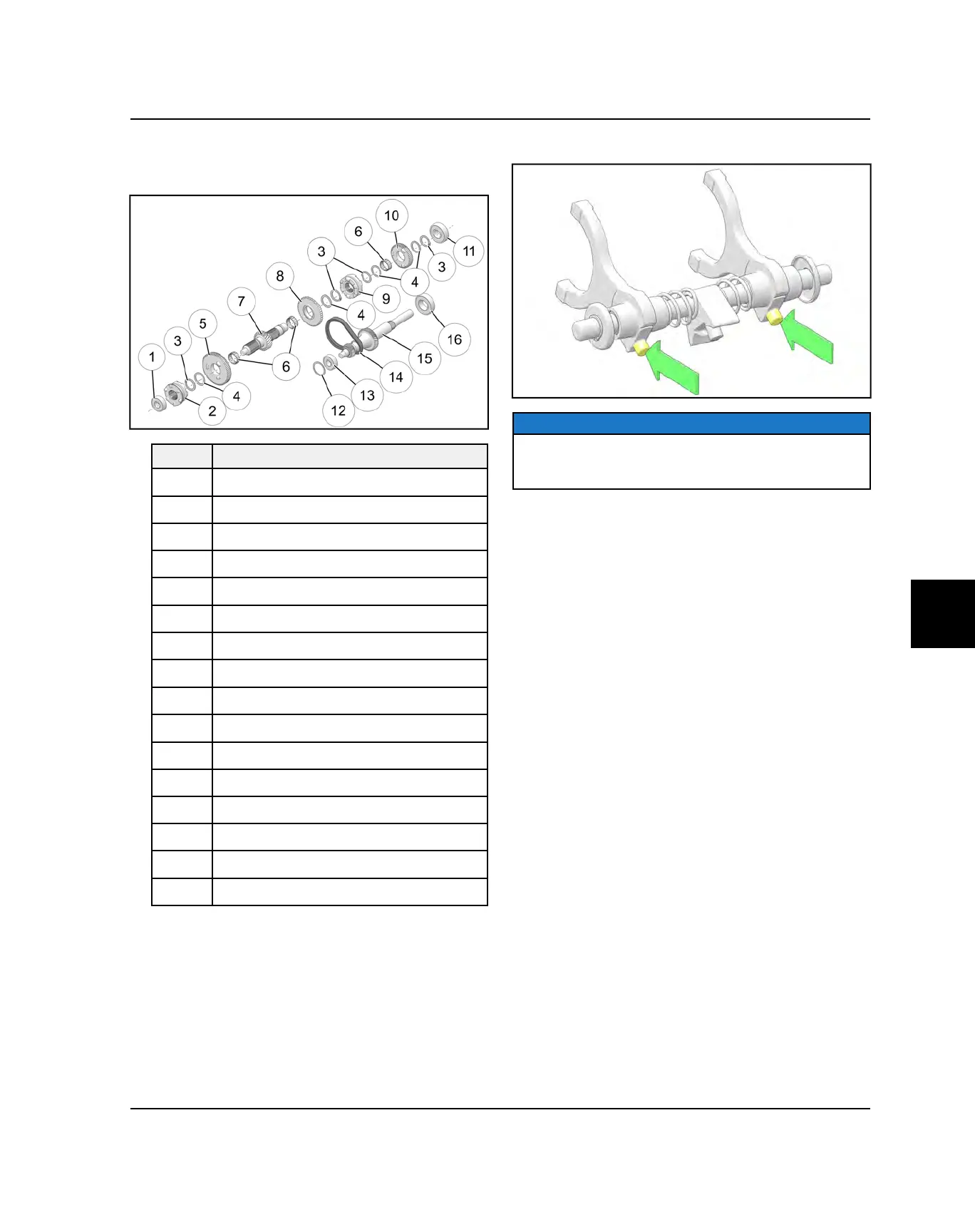

4. Assemble the reverse shaft assembly and input shaft
assembly if previously disassembled (see
illustrations).
ITEM DESCRIPTION
q
Bearing
w
Engagement Dog
e
Retaining Ring
r
Washer
t
Low Gear (67T)
y
Needle Bearing
u
Reverse Shaft
i
Gear (48T)
o
Engagement Dog
a
Gear (49T)
s
Bearing
d
Washer
f
Bearing
g
Chain
h
Input Shaft
j
Bearing
5. Assemble shift shaft rail if previously disassembled.
NOTICE
Both shift forks need to be orientated the same way, so
that the shift fork pins are both offset to the same side
of the rail.
TRANSMISSION
