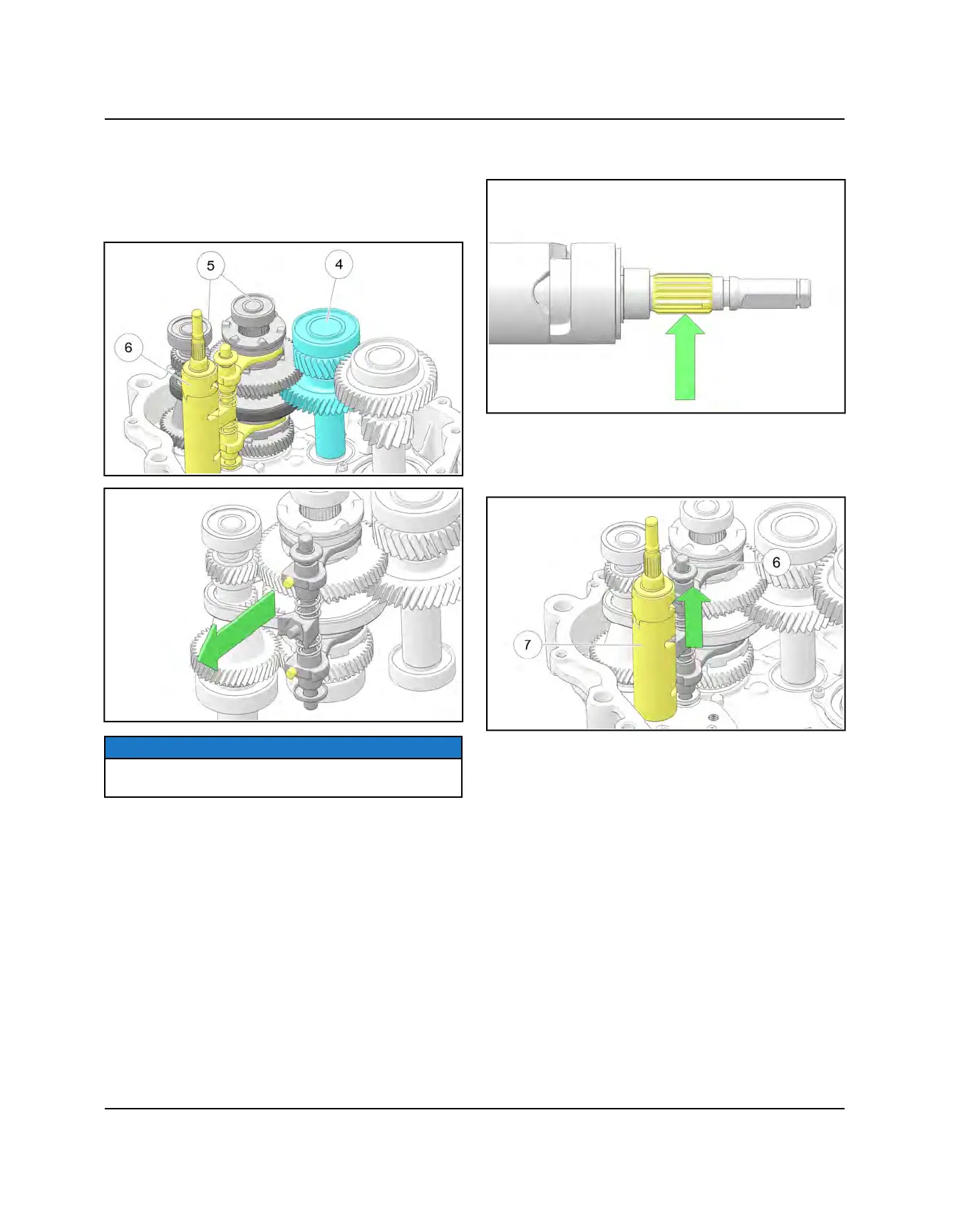

6. Install the idler gear shaft assembly
r
, gear cluster
assembly
t
and shift shaft rail
y
and shift forks into
the transmission housing as an assembly. Be sure
the shift forks are engaged into the engagement
dogs. Install the assembly into the transmission
housing, all at the same time.
NOTICE
Shift fork pins should be offset towards the input shaft
as shown above.
7. Inspect the shift drum for any damage or wear.
Inspect the splines of the shift drum.
8. Install the shift drum
u
into the transmission housing.
Lift up on the shift shaft rail
y
and move the rail
assembly towards the shift drum to allow the shift fork
ends to be installed into the shift drum
u
.
TRANSMISSION
