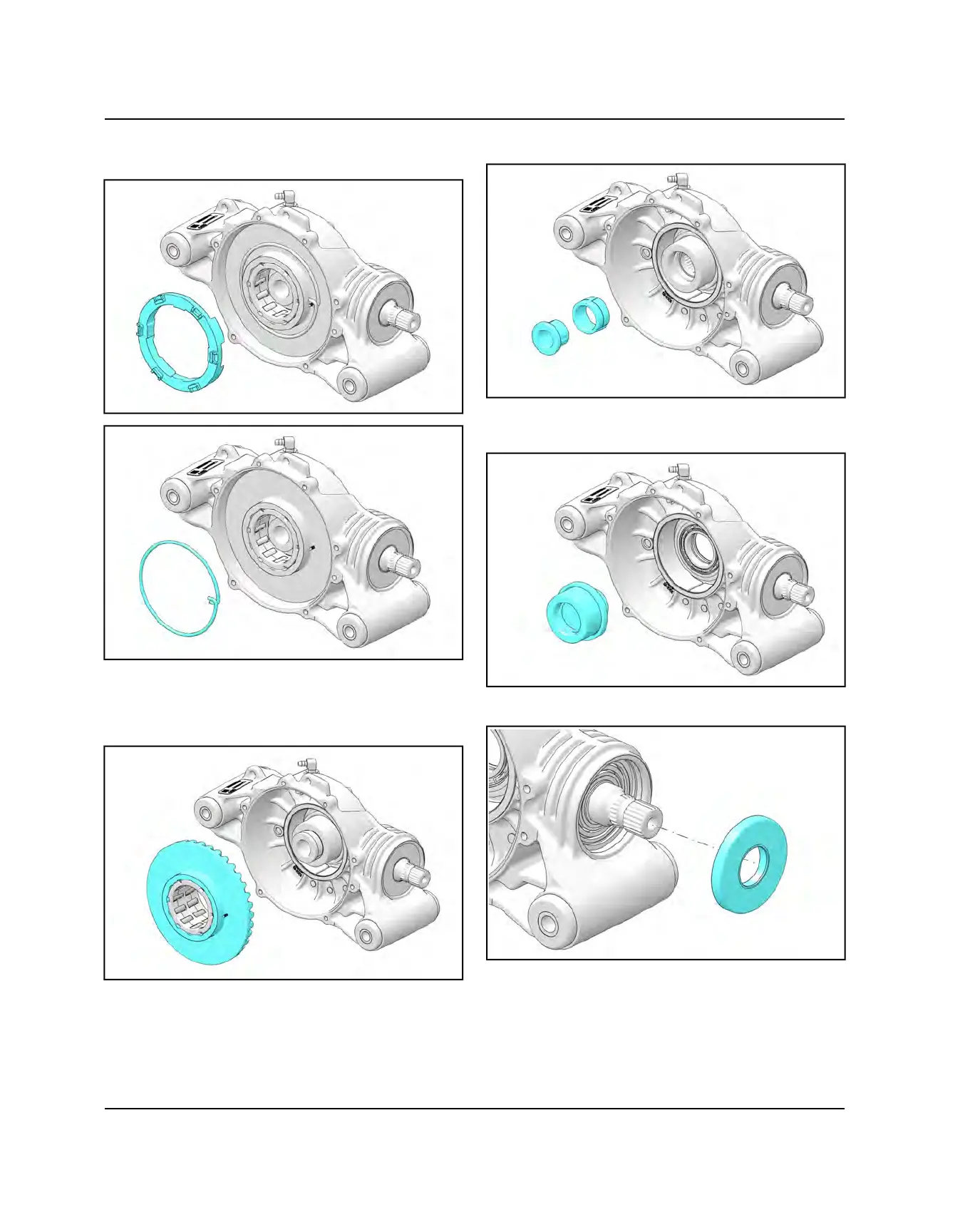

5. Remove the spring retainer and torsion spring from
the top of the ring gear.
6. Remove the ring gear and roll cage assembly from
the gearcase housing. With the ring gear removed
inspect the ring gear dowel pin and ensure that it is
seated correctly.
7. Remove inner and outer bushing / spacer.
8. Remove the RH output hub assembly from the
gearcase housing.
9. Remove pinion seal.
