8.33

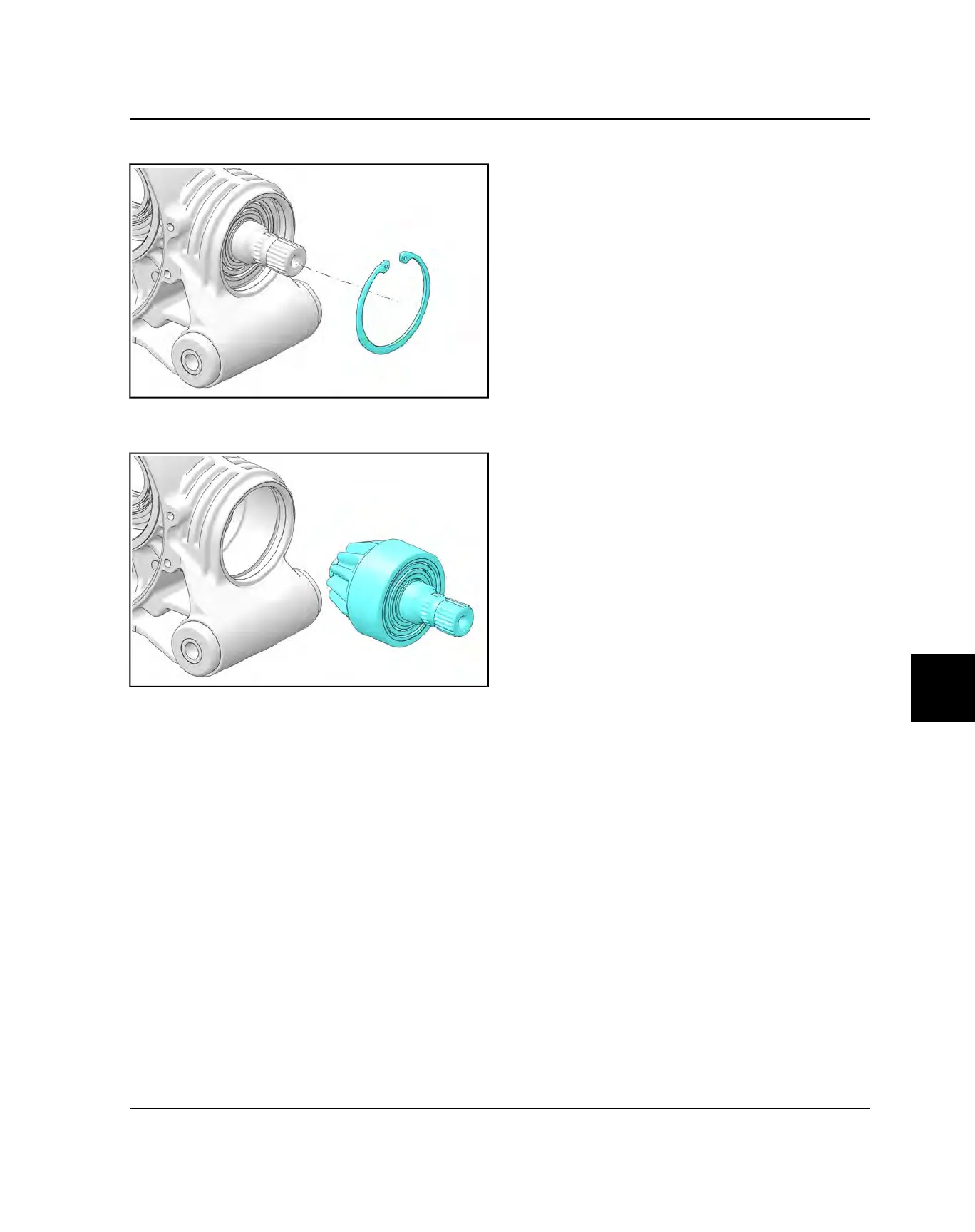

10.Remove the internal retaining ring / snap ring.
11. Remove the pinion gear assembly from the gearcase
housing.
12.Inspect and clean the gearcase housing and replace
any oil seals and O-rings upon assembly.
FINAL DRIVE
