11.23

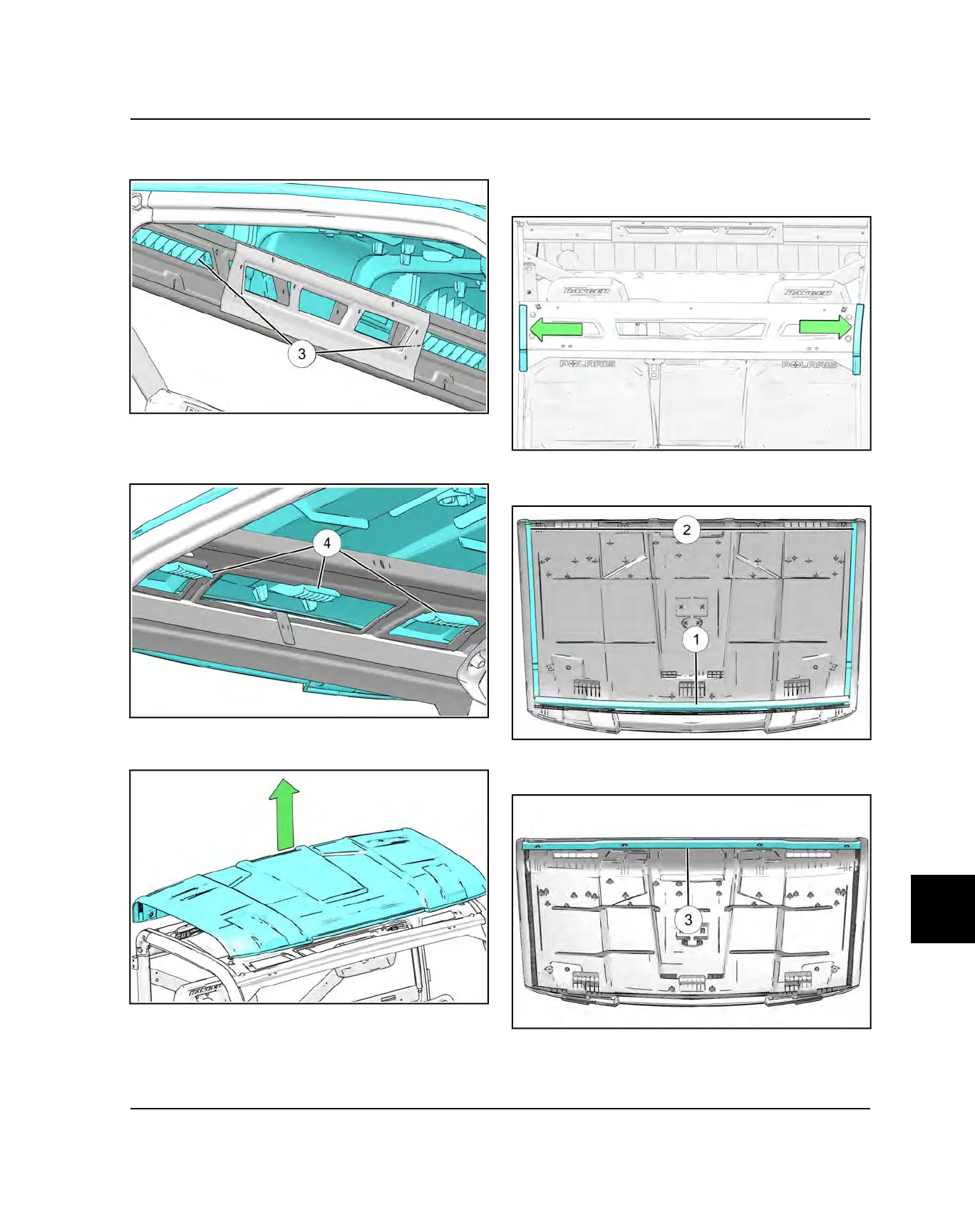

3. Disengage the rear roof retainers
e
from the rear
ROPS assembly.
4. Move the roof towards the front of the vehicle to
disengage the front retainers
r
from the windshield
plate.
5. With the aid of an assistant, lift the roof straight up to
remove.
INSTALLATION
1. If necessary, install the front windshield sealing tape
on the edge of the visor and against the A-pillars as
shown.
2. If necessary, install the front and side roof seals
q
&
w
.
3. If necessary, install the rear roof seal
e
, and align
with mounting holes.
BODY / FRAME
