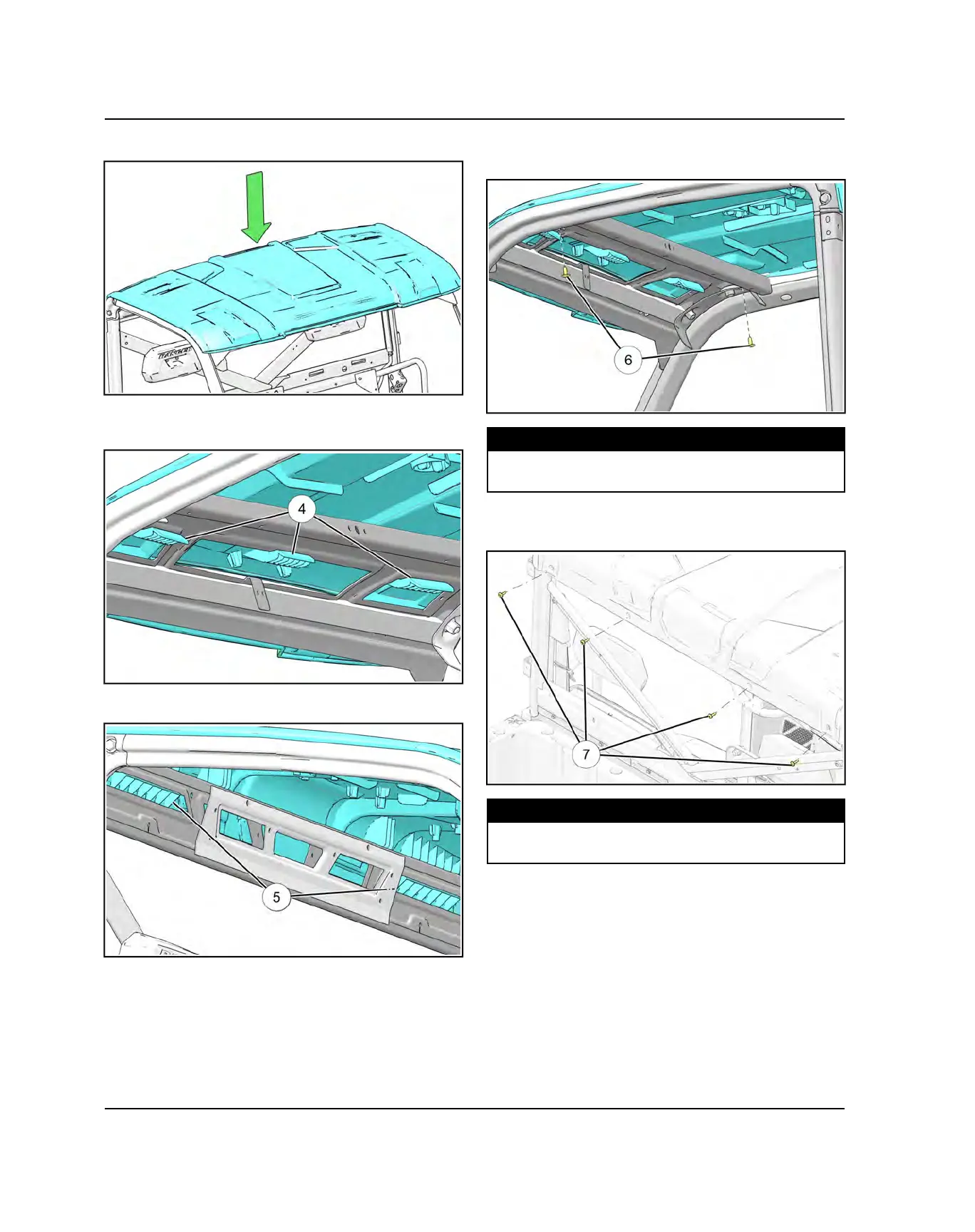

4. Install the roof on the vehicle.
5. Engage the front retainers
r
of the roof in the
windshield plate frame.
6. Engage the rear roof retainers
t
into the rear ROPS.
7. Install the two front roof fasteners, washers, and
spacers
y
. Torque to specification.
TORQUE
Roof Fasteners:
42 in-lbs (5 Nm)
8. Install the four rear roof fasteners
u
and torque to
specification.
TORQUE
Roof Fasteners:
42 in-lbs (5 Nm)
9. If equipped, install the headliner. Refer to Headliner
Service page 11.25.
10.If equipped, install the audio unit..
11. If equipped, install any electrical harnesses attached
to the roof.
