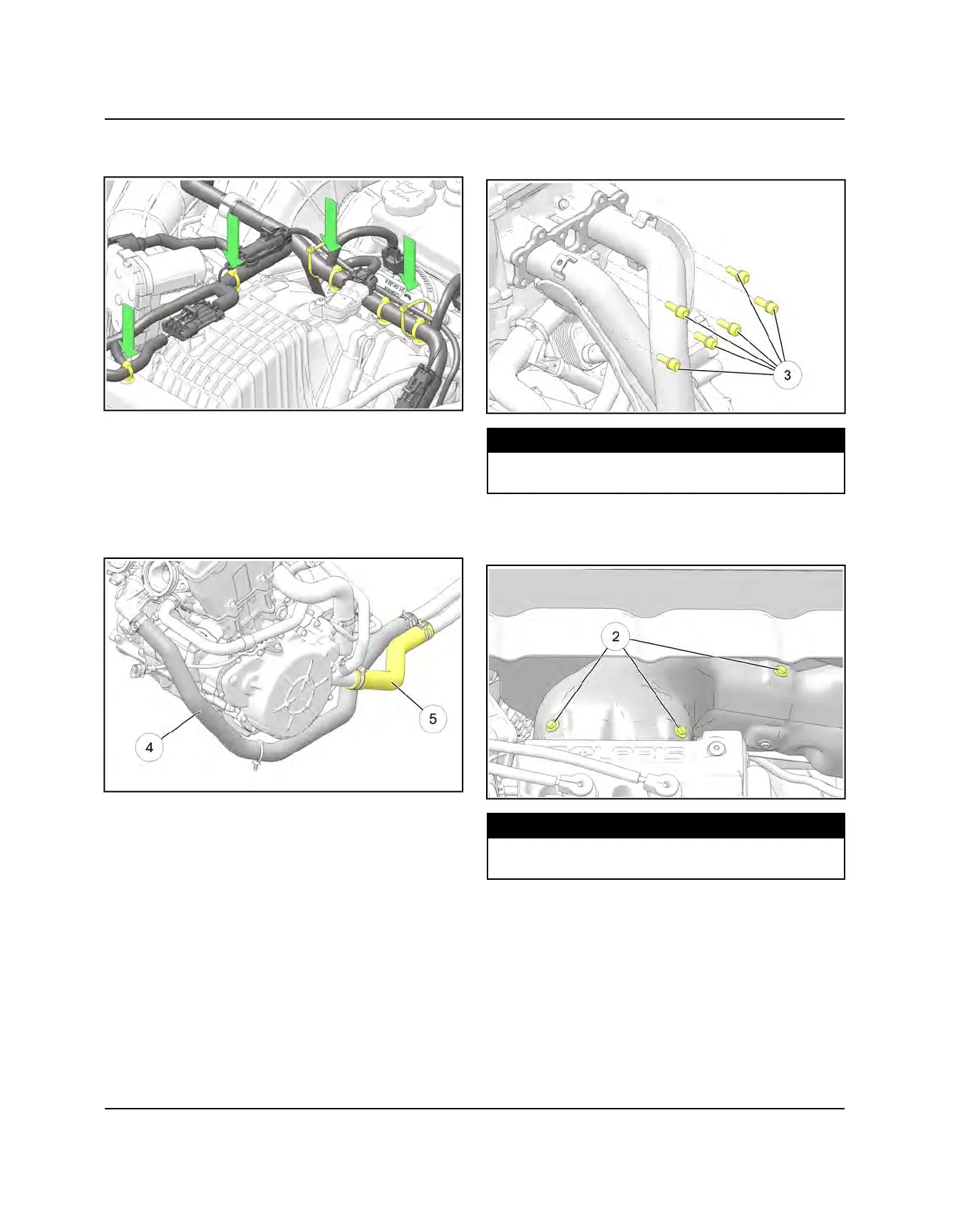

12.Install zip ties retaining fuel lines and harnesses to
intake manifold.
13.Connect harness going to TMAP sensors, CPS,
coolant temp sensor, Trans switch, speed sensor,
injectors, ETC.
14.Connect the fuel supply at the fuel rail.
15.Connect stator harness.
16.Install the thermostat housing hose
r
and the water
pump hose
t
.
17.Install a new head pipe gasket and install the head
pipe on the cylinder head studs.
18.Install the six fasteners
e
retaining the head pipe to
the cylinder head. Torque fasteners to specification.
TORQUE
Exhaust Head Pipe Mounting Bolts:
18 ft-lbs (24 Nm)
19.Install the upper heat shield to the head pipe. Install
three fasteners
w
retaining the upper heat shield to
the head pipe. Torque to specification.
TORQUE
Exhaust Head Pipe Upper Heat Shield Fasteners:
6 ft-lbs (8 Nm)
20.
21.Connect oxygen sensor.
22.Connect the ignition coil.
23.Install cargo box. Torque fasteners to specification.
See Cargo Box Installation, page 10.24
24.Fill coolant reservoir. Bleed system as required. See
Cooling System Bleeding Procedure, page 3.91.
25.Check and fill engine oil as required. See Engine Oil
and Filter Replacement, page 2.34.
