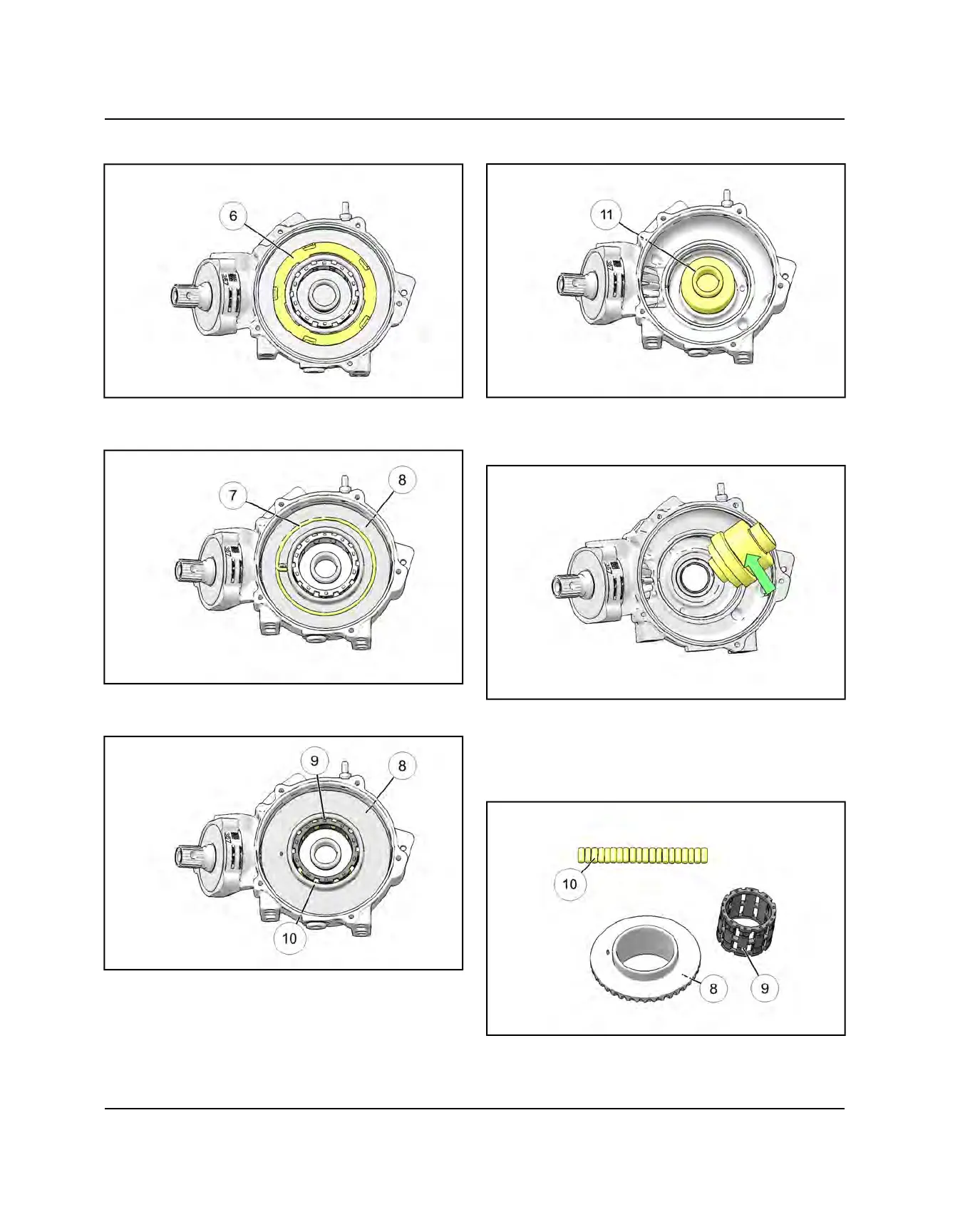

7. Remove the torsion spring retainer
y
.
8. Remove the torsion spring
u
from the top of the ring
gear
i
.
9. Remove the roll cage assembly
o
, rollers
a
, and
ring gear
i
. Inspect for wear.
10.Remove the LH output hub
s
.
11. Inspect the bearing and contact surfaces of the output
hub for signs of wear or damage. Replace component
if found to be worn or damaged.
12.Thoroughly clean all parts. Inspect the bearing
surfaces of the output hub. Inspect the rollers
a
for
nicks, scratches and flat spots. Inspect the roll cage
o
for damage or cracks. The rollers must slide up
and down freely within the roller cage surfaces.
