9928487 R01 - 2018 RANGER XP 1000 Service Manual

7.33

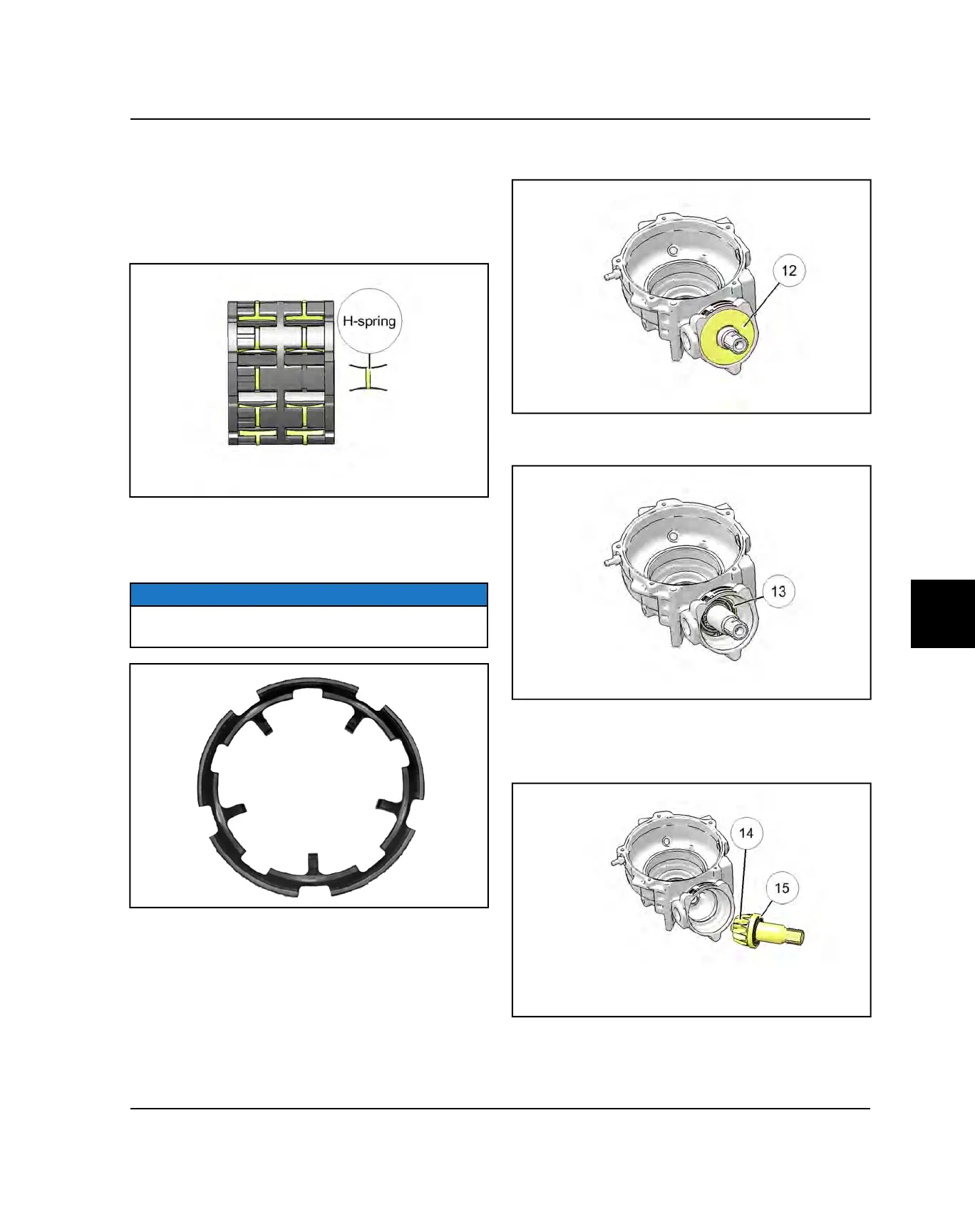

13.Inspect the ring gear

for inconsistent wear patterns

or damage. The surfaces should be free of nicks or

burrs.

14.Inspect roll cage sliding surface. This surface must be

clean and free of nicks, burrs or scratches. Inspect

the H-springs, but do not remove them from the

roll cage.

15.Inspect the armature plate for a consistent wear

pattern. Uneven wear of the armature plate indicates

a warped plate, which may cause intermittent

operation.

NOTE

See “FRONT GEARCASE DIAGNOSIS” later in this

chapter for more details.

16.Drill a hole in the input shaft seal

and remove the

seal using a pry bar or seal puller.

17.Remove the snap ring

retaining the input shaft

assembly.

18.Remove the input shaft assembly. Inspect the pinion

gear

for chipped, broken, or missing teeth. Inspect

the input shaft bearing

for signs of wear. Replace

the input shaft cover O-ring prior to reassembly.

FINAL DRIVE
