RealPresence Collaboration Server (RMX) 1500/1800/2000/4000 Getting Started Guide
Polycom®, Inc. 49

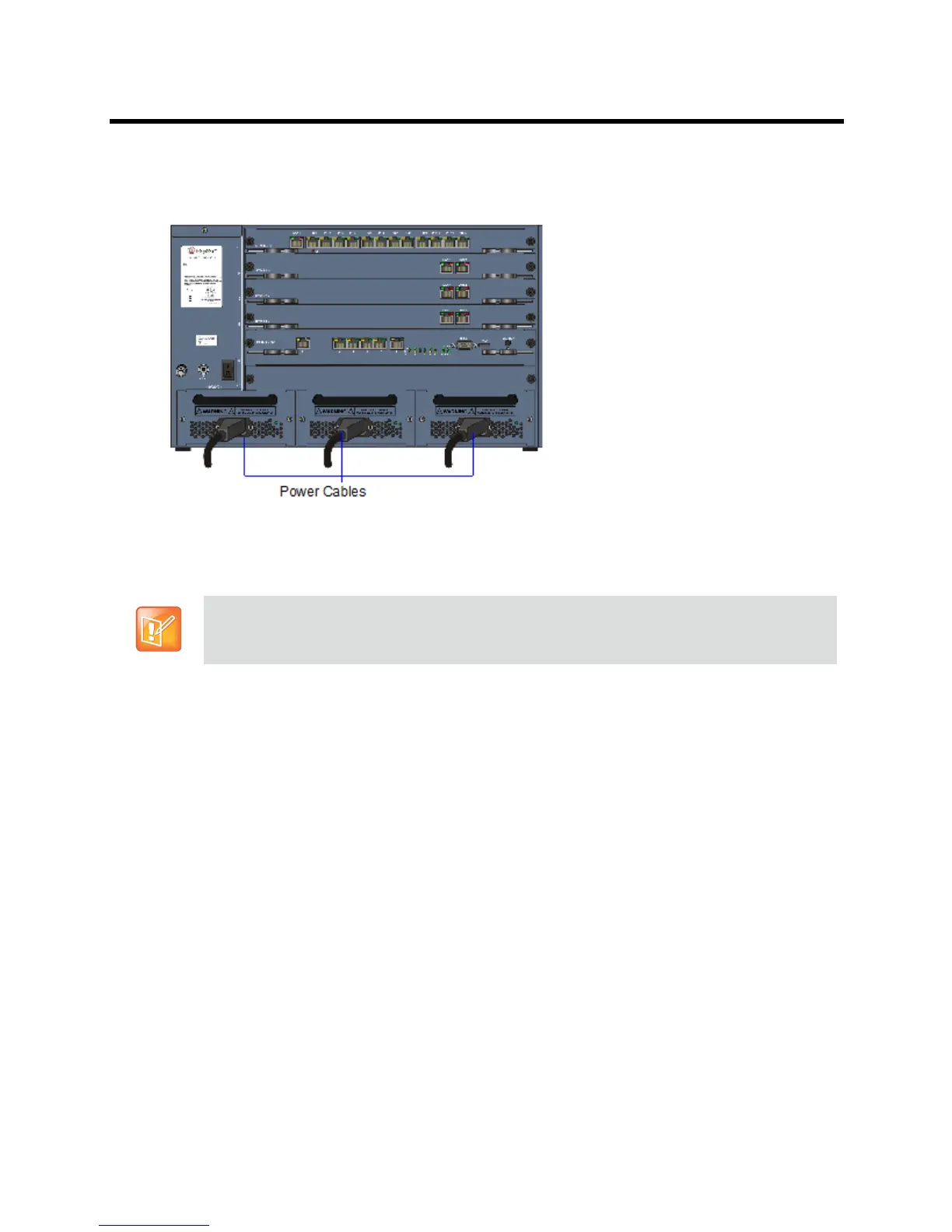

AC Power Supply connections:
1 Insert power cables to each of the three AC Power Entry Modules (PEMs)
.
DC Power Supply connections:
1 On the DC Power Rail Modules set the two circuit breakers to OFF
.
2 Ensure that the cables from the Main that supplies electricity to the DC power units are OFF or
disconnected.
3 Remove the transparent plastic caps on the terminal block.
4 Using the two wires of a 10 AWG cable running from the DC power distribution unit, connect the
black wire into the -48VDC terminal block and the red wire to the RTN terminal block.
Two types of circuit breakers can be installed on the DC Power Rail Module (PRM). For more
information, see the RealPresence Collaboration Server (RMX) 4000 Hardware Guide.
