RealPresence Collaboration Server (RMX) 1500/1800/2000/4000 Getting Started Guide
Polycom®, Inc. 79

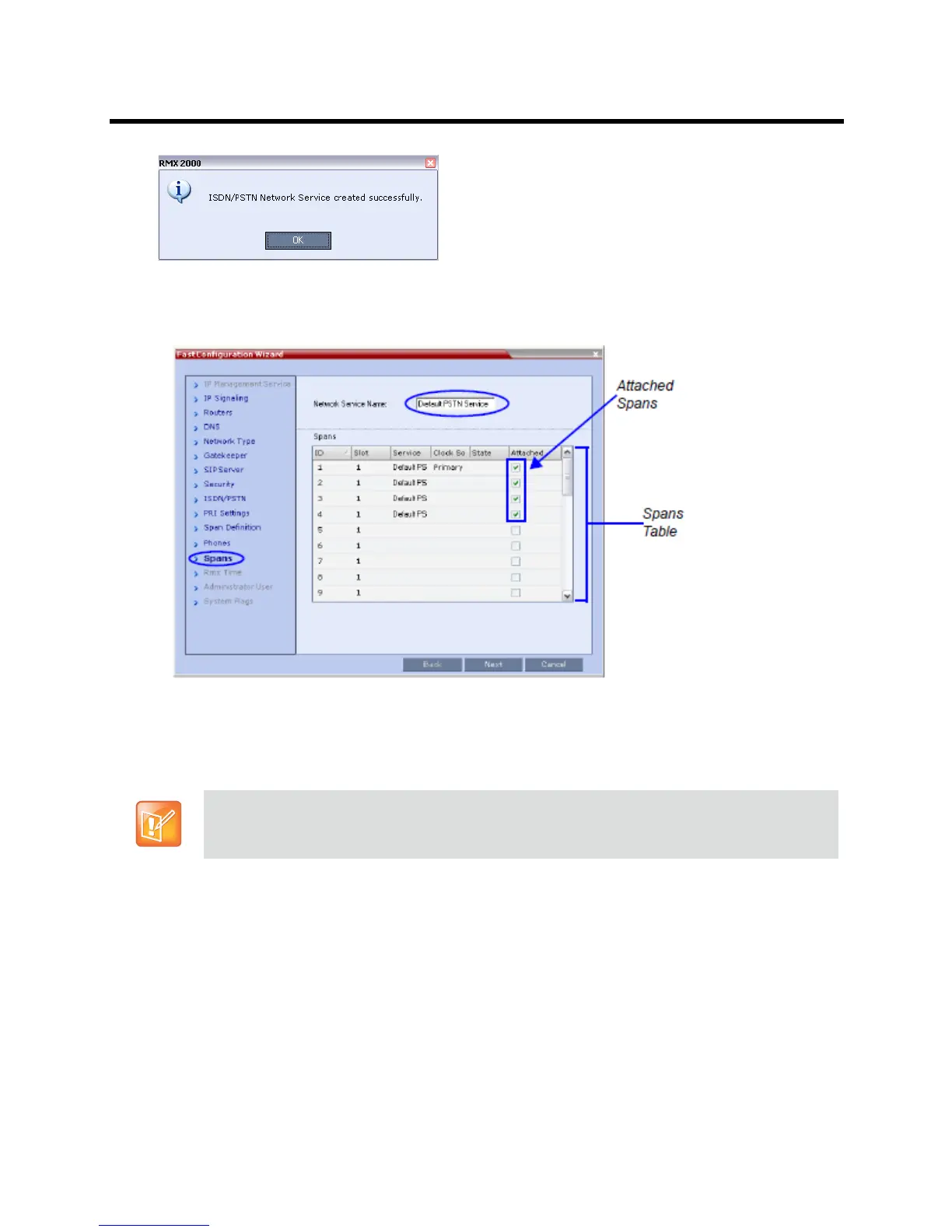

30 Click OK to continue the configuration.
The Spans dialog box opens displaying the following read-only fields:
ID – the connector on the RTM ISDN card (PRI1 to PRI12).
Slot – the MPMx/MPMRx card that the RTM ISDN / RTM ISDN 1500 card is connected to
(RealPresence Collaboration Server (RMX) 2000: MPM 1/MPM2 RealPresence Collaboration
Server (RMX) 4000: MPM1/MPM2/MPM3/MPM4).
Service – the ISDN/PSTN Network Service to which the span is assigned.
Clock Source – indicates if ISDN signaling synchronization is being supplied by the Primary or
Secondary clock source. The first span to synchronize becomes the Primary clock source.
State – the System Alert level of the span (Major, Minor). If there are no span related alerts, this
column contains no entries.
On the RealPresence Collaboration Server (RMX) 1500, the Slot field does not appear.
