CIRAS-3 Operation Manual V. 1.09 121 support@ppsystems.com

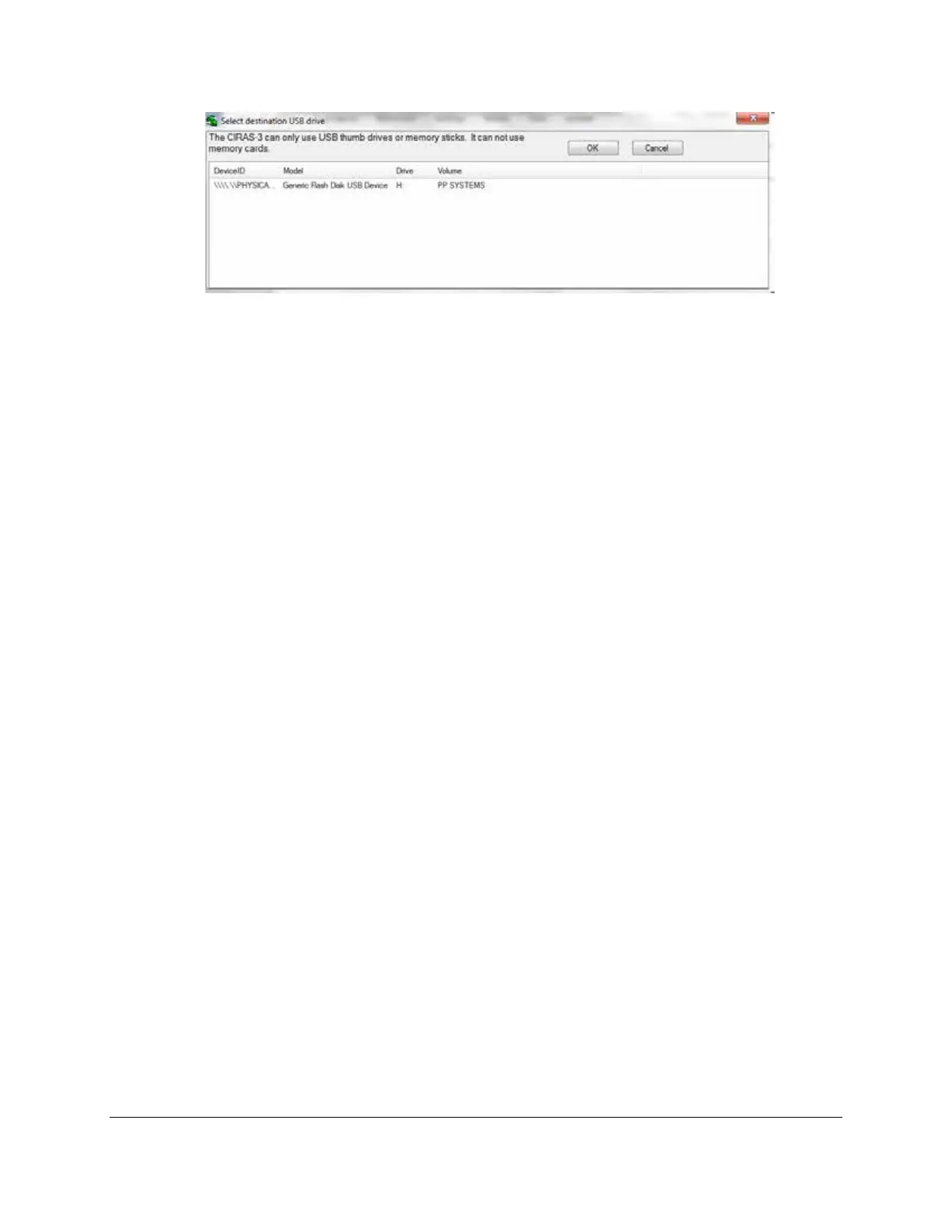

4. Click on the appropriate drive where the file(s) are located and then click OK.
5. Remove the thumb drive from your PC and insert it into USB1 or USB2 on the main console to
transfer the files.
6. On the CIRAS-3 console, click on Operations (F1)>Rec Options (F2)>Edit Rsp Crv
(F5)>Transfer (F5).
7. Tab over to “USB Memory Files”, arrow down to the file(s) and select them by hitting OK. There
should now be a check mark next to the files that you want to import.
8. Press Import (F2) to copy it from the USB thumb drive to CIRAS-3 console internal memory.
Now the file is available for use on the CIRAS-3 console.
Create/Edit Settings Files
Click on File>Open Settings Folder and browse to the location C:\Program Files (x86)\PP
Systems\CIRAS-3 PC Utility\Settings on your computer, and click OK. This opens the Settings File
window where you can select, create or edit settings files which can then be easily transferred to your
CIRAS-3 main console.
Select from the default list of Settings in the Settings File dropdown list. Note that for each type of
Settings File there are two windows that can be edited, and two tabs that allow access to these windows.
For example, PLC3 or PLC3-CFM settings files used for open system leaf-level photosynthesis and
chlorophyll fluorescence have a global Settings window tab labeled CFM (chlorophyll fluorescence). Click
the arrow button to expand the dropdown list at the Settings File and Accessory. Edit the script just as
you would if you were working from the CIRAS-3 Console. You can also click on the Graph View tab for
graph settings. Then click File >Save, or Save As to rename it.
