CIRAS-3 Operation Manual V. 1.09 47 support@ppsystems.com
Instructions:
1. Open battery compartment door on the front of the CIRAS-3 console (2 smalls screws) to access
the internal battery packs and gently drop down the door.
2. Remove battery retaining bracket which is currently in the “Ship” position.
3. Remove both battery packs from each compartment by pulling on the black tab.
4. Flip each battery pack over and re-insert into each compartment to snap into place with the
groove facing downwards towards the battery compartment door. The battery gauge should be
facing outwards and the battery removal black tab should be on the top of the battery pack.
5. Secure in place with the retaining bracket in the “Run” position.
6. Close battery compartment.
Charging Batteries inside the CIRAS-3 Console
An AC power supply adapter (120/240 VAC / 50/60 Hz) is supplied with the CIRAS-3 for charging the

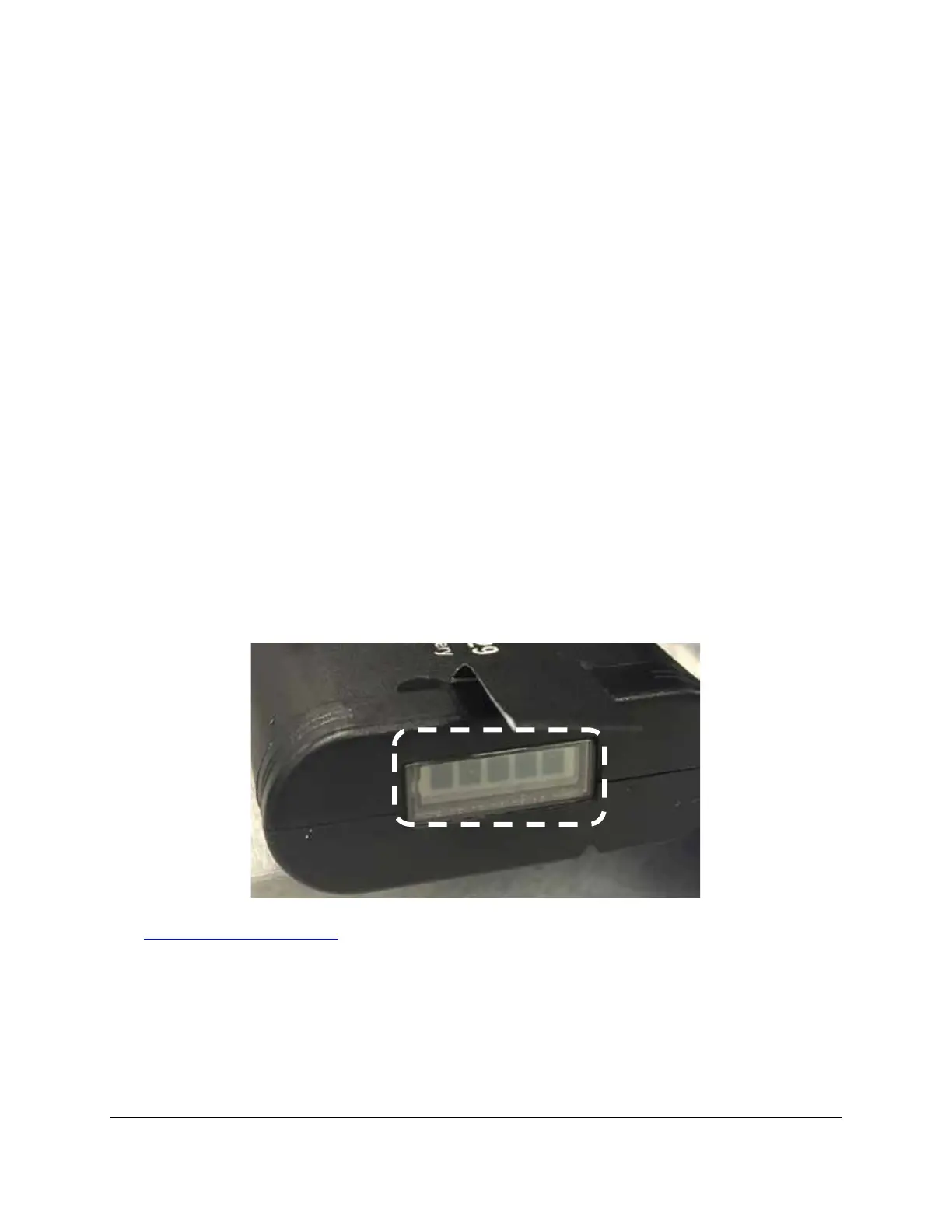

internal battery packs. Each battery pack (Inspired Energy type) has a charge indicator gauge on the
side to show the level of charge. When all 5 bars are dark it indicates that the pack is fully charged (see
below). Please note that the CIRAS-3 also reports the state of the battery packs in the lower right hand
corner of the display when the instrument is powered on.
See Battery Pack (Li-ion Battery) on page 178
for instructions on battery removal, storage and disposal.
