PP Systems CIRAS-3 - PLC3 Narrow and Conifer LED Light Unit

CIRAS-3 Operation Manual V. 1.09 58 support@ppsystems.com

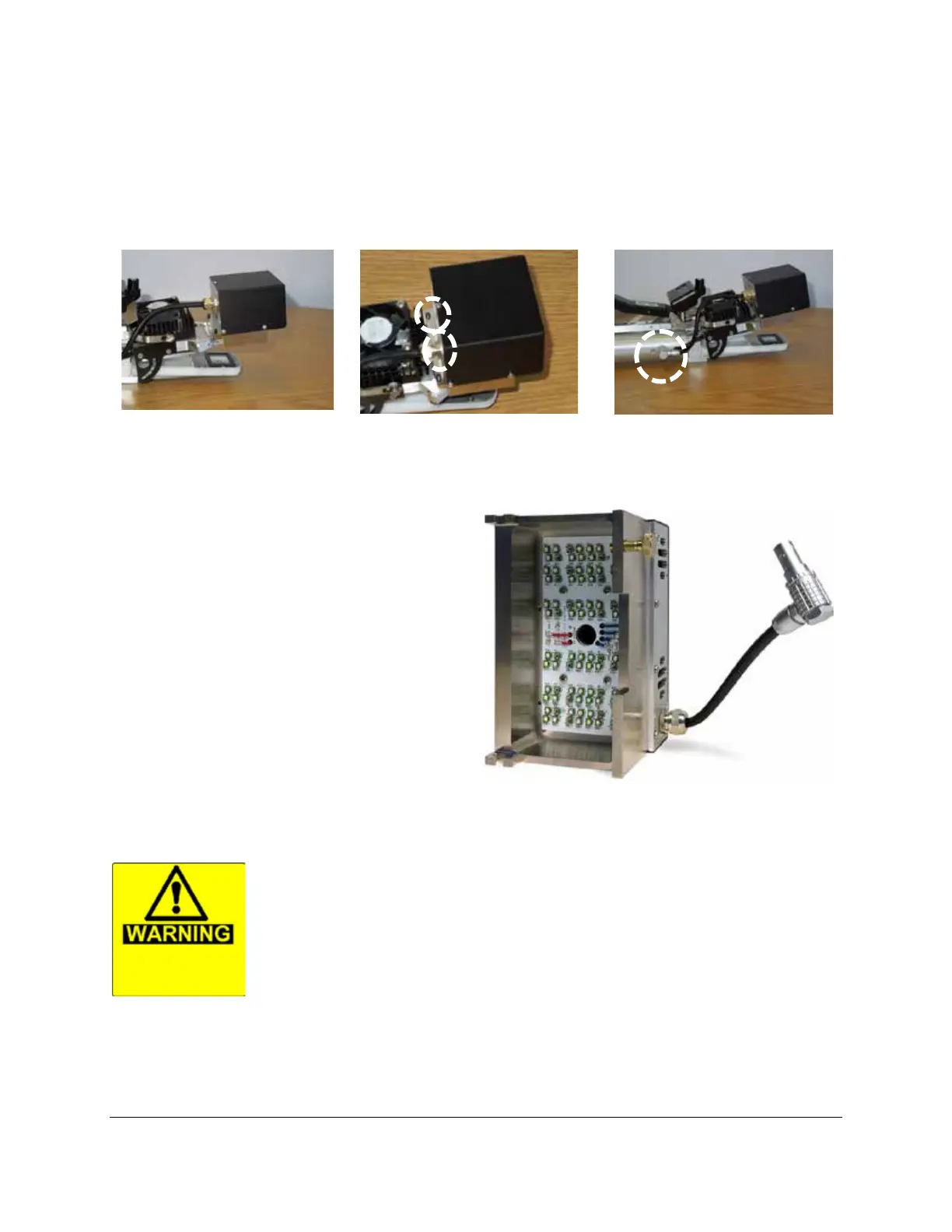

Step 1
First, mount the light unit by
aligning it to the front of the
cuvette upper jaw as shown
below.
Step 2
Slide the light unit back towards
the heat sink and fan on the leaf
cuvette locking it in place using
the two set screws shown below.
Step 3
Connect electrically.
PLC3 Narrow and Conifer LED Light Unit
This LED light unit for the PLC3 Narrow and Conifer
leaf cuvettes feature 96 LEDs, 24 each of RGBW
(red-green-blue-white) color. You are able to set
any single color from 0-100% of the light source, or
you can combine colors in any proportion to
recreate the spectral distribution of a specific
natural or artificial light source. With full power
available to the cuvette the normal intensity output
range will be 0-2000 µmol m
-2
s
-1
(ranges are
dependent on selection of red-green-blue-white
LEDs).
Caution: do not look directly at illuminated LEDs, even with the light unit set
to lower intensity control levels.
