Replacement of PLC3 Glass Window (For Use with CFM-3)
For most leaf gas exchange measurements a Calflex window is used with the PLC3 Universal Leaf
Cuvette. However, for measurement of chlorophyll fluorescence using the CFM-3 the Calflex window
must be replaced with a plain glass window. When the CFM-3 is purchased with the CIRAS-3 the glass
window is already fitted to the PLC3 Universal Leaf Cuvette.

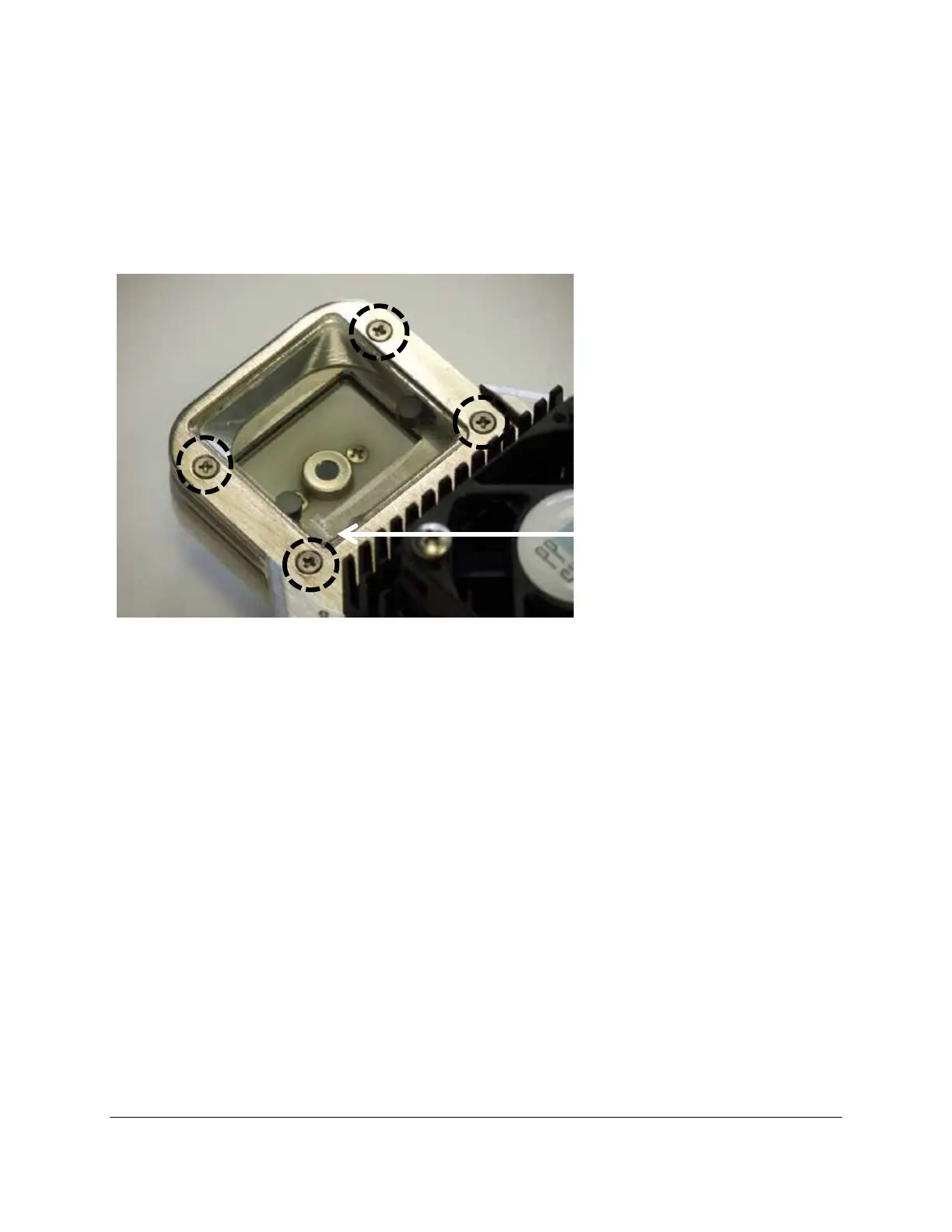

To remove the Calflex window plate
remove the four Philips type screws
and replace with the plain glass
window plate as shown here. To
ensure an air-tight seal, we
recommend putting a slight smear of
silicone grease under the head plate
prior to fitting it to the leaf cuvette
head.
Check to make sure that the letter
“P” is etched in the lower left hand
corner prior to measurement of
chlorophyll fluorescence.
After replacement of the window, we suggest that you perform a simple leak test to ensure that the
system is air tight as follows:
• Set CO2r to 0 and H2Or to 100%.
• Close the leaf cuvette head with no leaf present.
Monitor the CO2r, CO2d and H2Od. After a couple of minutes, the CO2r should be close to 0 (± 1 µmol
mol
-1
), CO2d should read approximately 0 (± 1 µmol mol
-1
) and H2Od should also read approximately 0 (±
0.5 mb).
