CIRAS-3 Operation Manual V. 1.09 123 support@ppsystems.com

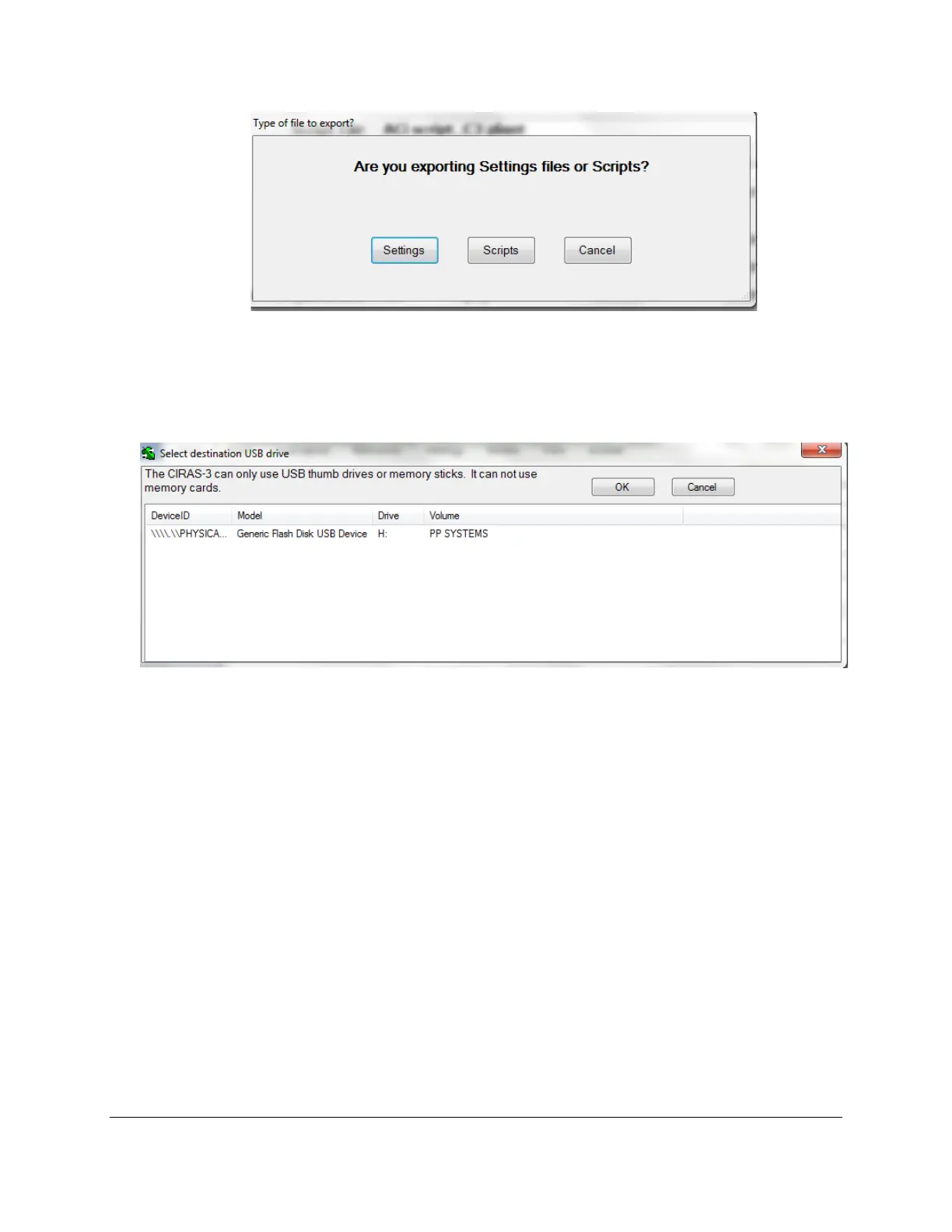

2. Click on Settings.
3. Navigate to the location where you saved the settings file and select one or more settings files
and then Open. The following window should appear:
4. Click on the appropriate drive where the file(s) are located and then click OK.
5. Remove the thumb drive from your PC and insert it into USB1 or USB2 on the main console to
transfer the files.
6. On the CIRAS-3 console, click Settings (F2)>Transfer (F3).
7. Tab over to “USB Memory Files”, arrow down to the file(s) and select them by hitting OK. There
should now be a check mark next to the files that you want to import.
8. Press Import (F2) to copy it from the USB thumb drive to CIRAS-3 console internal memory.
Now the file is available for use on the CIRAS-3 console.
Remote Display
This feature allows the user to view all screens of the CIRAS-3 using an external device such as a PC
computer or projector. This can be very useful when presenting information to a large group or for
teaching applications.
