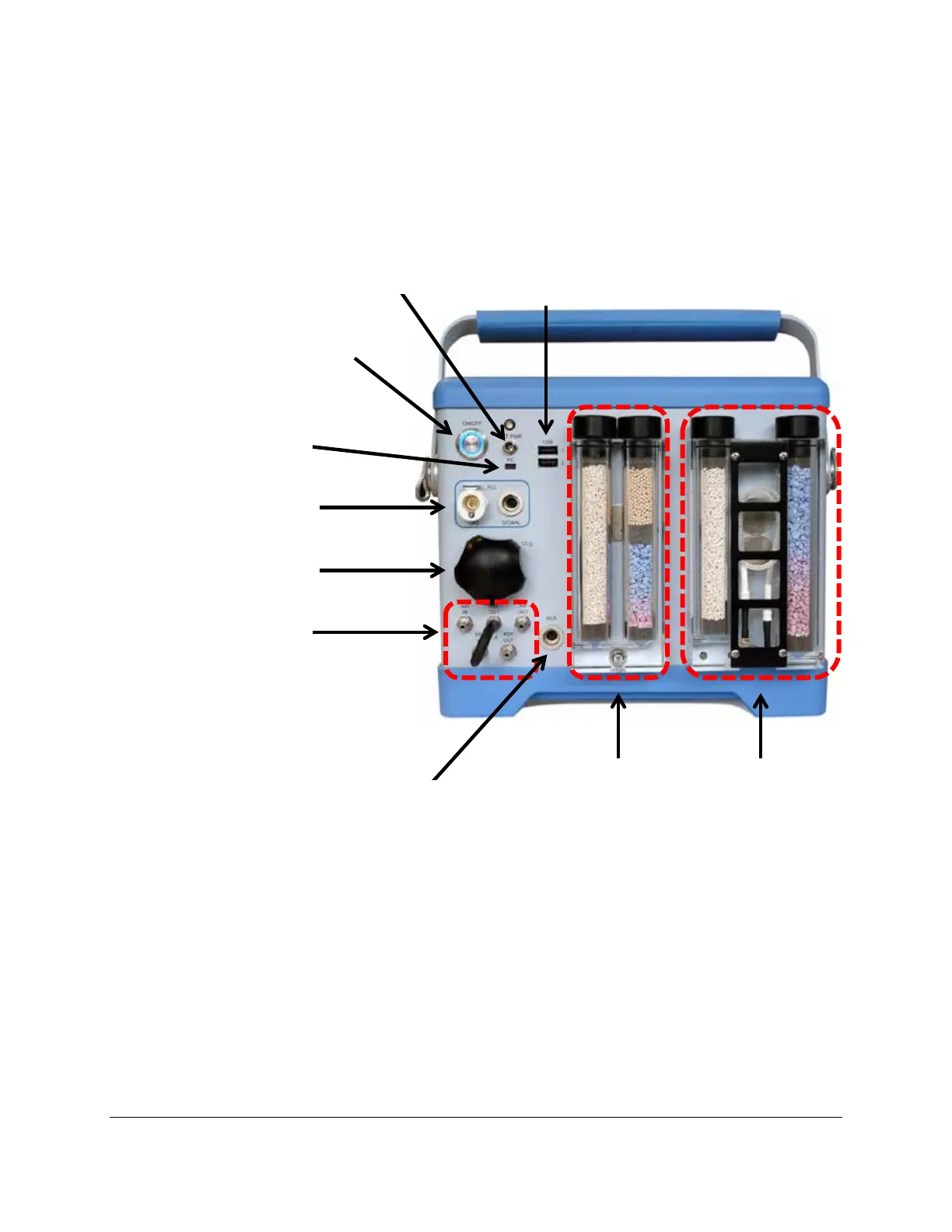

CIRAS-3 Rear Console
The CIRAS-3 rear console contains all of the essential components including power, gas and electrical
connections, USB ports, charger socket, desiccants and CO
2
cartridge holder.
USB Flash Drive Ports
There are two USB flash drive ports labeled USB1 and USB2. These are used for
downloading/uploading stored data files and for transfer of settings and response script files.
Zero
columns
CO
2
/H
2
O control
columns and
H
2
O equilibrator
USB flash
drive ports
Battery charging
socket and LED
Mini USB
Power
Gas ports and link
pipe
PLC connections
CO
2
cartridge holder
Auxiliary connector for
use with SRC-1/2 and
CPY-4/5
