CIRAS-3 Operation Manual V. 1.09 86 support@ppsystems.com
Timed Recording

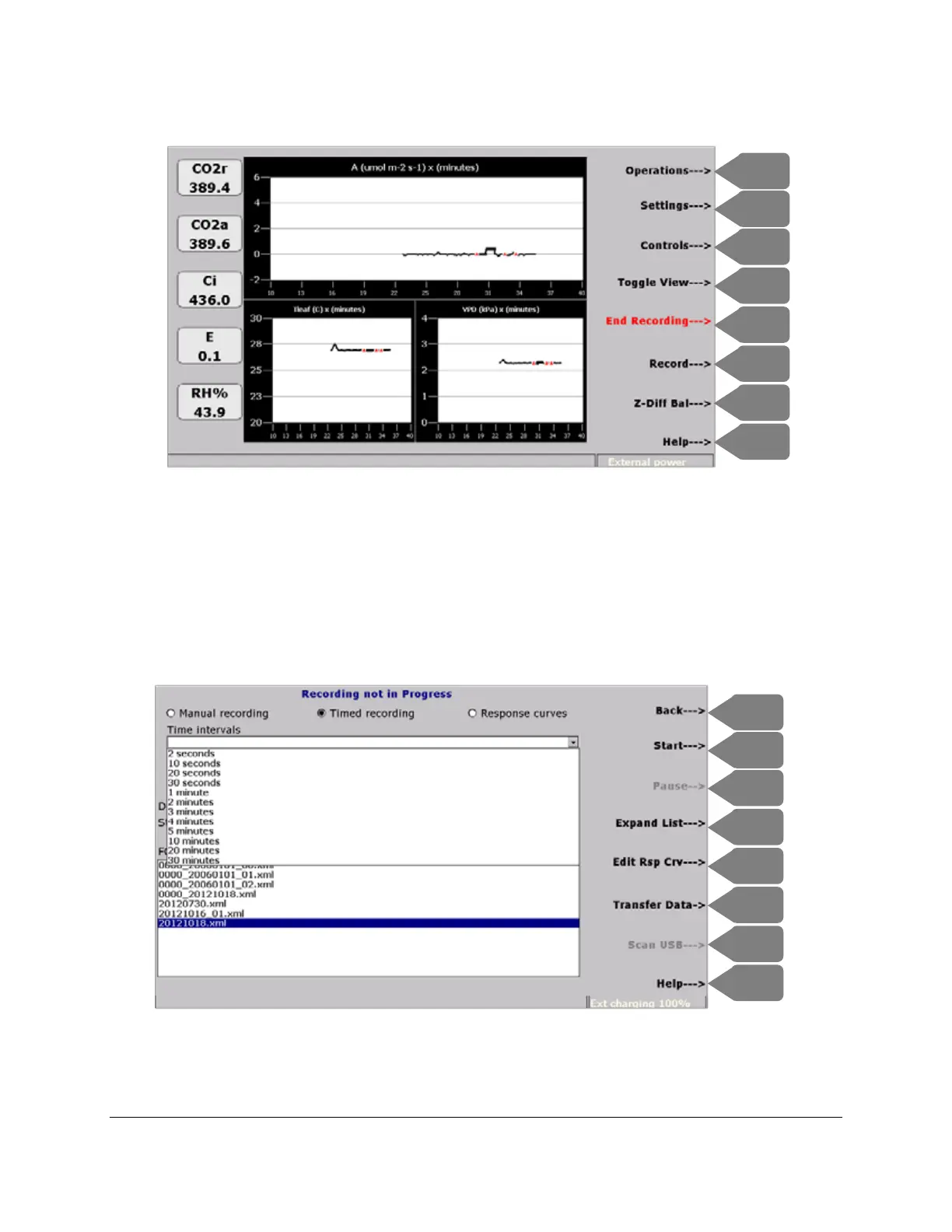

Using the arrow keys select Timed recording and use the TAB key to highlight the Time intervals field,
then press Expand List (F4) to drop down the available selections in the list. Data can be recorded
automatically at intervals from 2 seconds to 30 minutes. Use the Up or Down arrows to make the
selection and press OK. Accept the default filename or rename it, and proceed back to Numeric or Graph
Views screens as described above.
The status bar at the bottom of the screen will indicate Next record in mm:ss, counting down to the next
automatic recording interval. Timed recording continues indefinitely at the selected recording interval
unless paused. This can introduce unnecessary and irrelevant data into your data file. To suspend
