Section 4. System Components and Assembly
CIRAS-3 Main Console
The CIRAS-3 console houses the IRGAs, gas circuit including absorber columns with chemicals, gas and
electrical connections, on-board computer, color display and keypad. The console is the base instrument
for several different possible configurations of use. The range of applications includes leaf gas exchange,
chlorophyll fluorescence, canopy assimilation, soil respiration, analyzer platform for custom-built
chambers (both closed- and open-system), and direct measurement of gaseous CO
2
and H
2
O.
On the front side of the console you find the user interface with its 30° display and keypad group used to
navigate the CIRAS-3 console menus. Access to the Li-ion battery pack(s) and internal mechanical and
electrical components is achieved by loosening the two captive screws (turn counter-clockwise to release)
and gently lowering the door.
System Power
Power Supply Adapter
An AC power supply adapter (120/240 VAC / 50/60 Hz) is included with the CIRAS-3. If mains power is
available the system can be operated continuously using the power supply adapter. This same adapter is
also used to charge the internal battery packs. You must use the power supply adapter supplied by
PP Systems as other types may cause damage to the instrument.

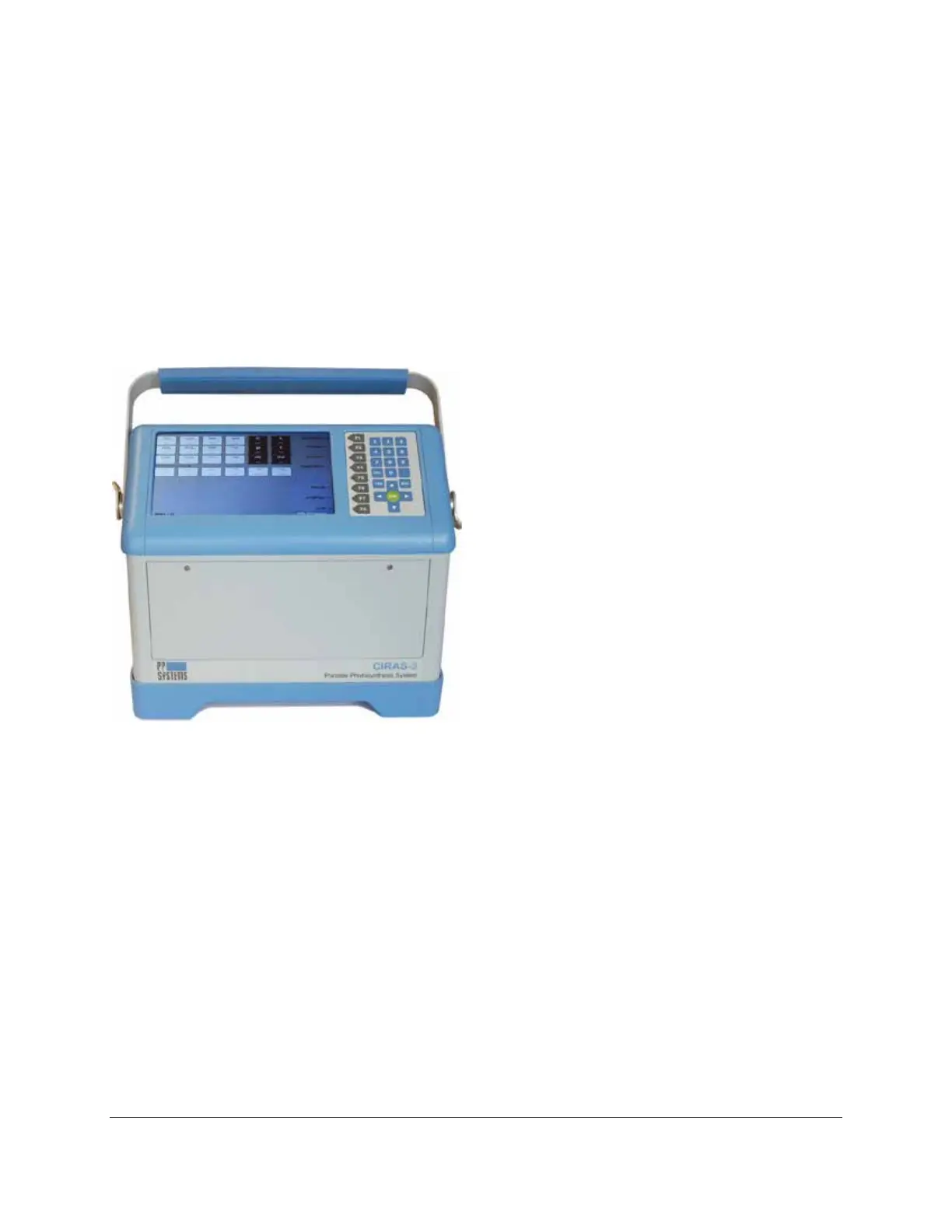

transflective LCD
optimized for field use
.
B. Tactile feel keypad and
function keys for
navigation
C. Battery compartment
and main access to
To Next Page
