CIRAS-3 Operation Manual V. 1.09 82 support@ppsystems.com
Reviewing and Transferring Data Files
Transfer Data (F6)
Retrieving your .xml data files from CIRAS-3 internal memory is a routine operation that is accomplished
with a few easy steps. Importantly, we allow two-way transfer of three file types: data, settings and
scripts. The example below describes transferring data files. Press Operations (F1) > Rec Options (F2)
and Transfer Data (F6).

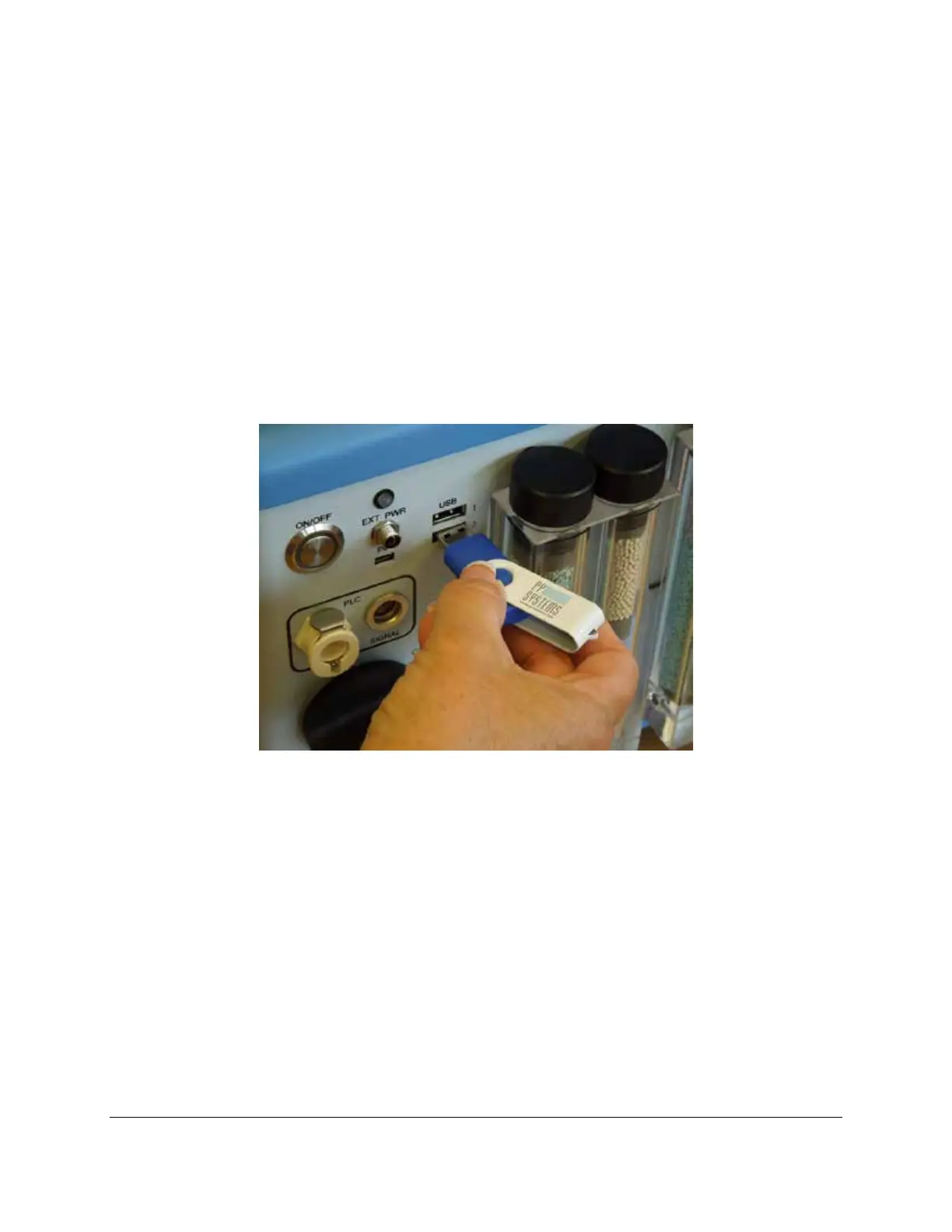

Insert a USB2 or newer device (alternatively referred to as “memory stick” or “thumb drive”) into the USB
port located at the back of the console. Press Scan USB (F7) to see the contents stored on the USB
device – only compatible .xml files will appear.
The Transfer Files screen is dominated by two large fields: Internal Memory Files is on the left, and USB
Memory Files on the right side. Use the TAB key to move back and forth between the two file locations.
Within a location field, use the Up and Down arrow keys to highlight files, one at a time, and press OK to
select the file you want to move. You know the file has been selected when it has a check mark in the
small box to its left.
To Next Page
