J3 and J4 Application
SCB J3 and J4 must always be in
the SCB position
IMUX 2000E1 RFL Electronics Inc.

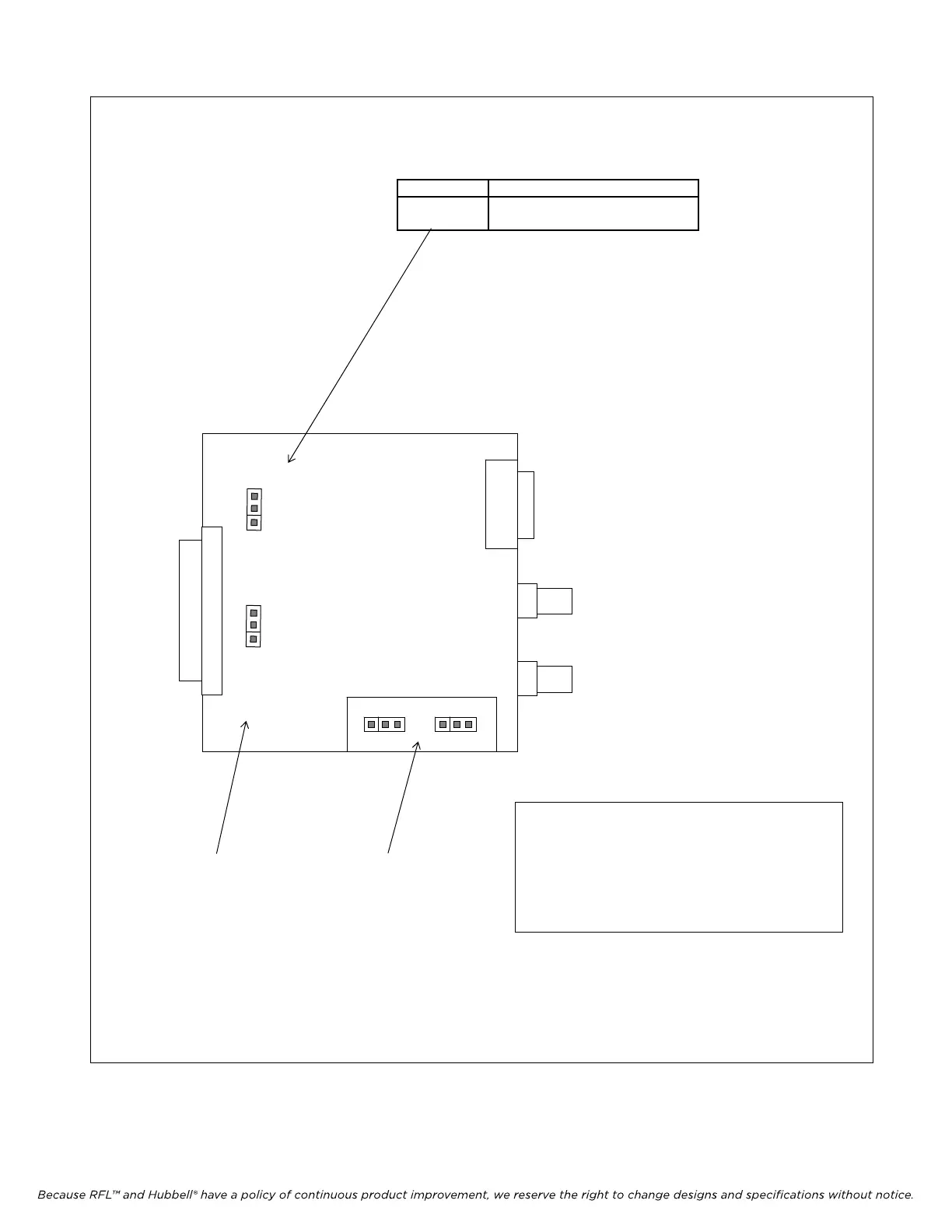

Figure 5-3. Location and use of setup jumpers on MA-275R Module Adapter.
MA-275R
SCB
J3
SCBT
SCBT
J4
SCB
J2 J1
1 0 1 0
MODE 0 MODE 1
See Figure 2-15 for
front panel view
IMPORTANT NOTE:
The view shown in this figure is of the MA-275R
upper board. The jumpers for the middle board
are partially blocked in this view. The jumper
settings for the middle board are the same as
the jumper settings shown in Figure 5-2 for the
MA-270R.
Upper Board Middle Board
January 1, 2008 5-4 (973) 334-3100
