6.5.3.7.3 Configuration And Status Window for the VF5C
The Configuration and Status window for the VF5C is shown in Figure 6-20. The user can change
parameters by making changes in the control boxes. The actual values appear immediately to the right
of the control boxes. Refer to the VF5C Instruction Data sheet in Section 16 of this instruction manual
for additional information on the VF5C module. When finished with either viewing or changing the
VF5C settings, click on Exit to return to the Display/Change Node window as shown in Figure 6-16.
To view the settings of the VF16B card, first click on VF16B and then click on View. This will bring
you to the View or Change a Card window for the VF16B card as shown in Figure 6-21.

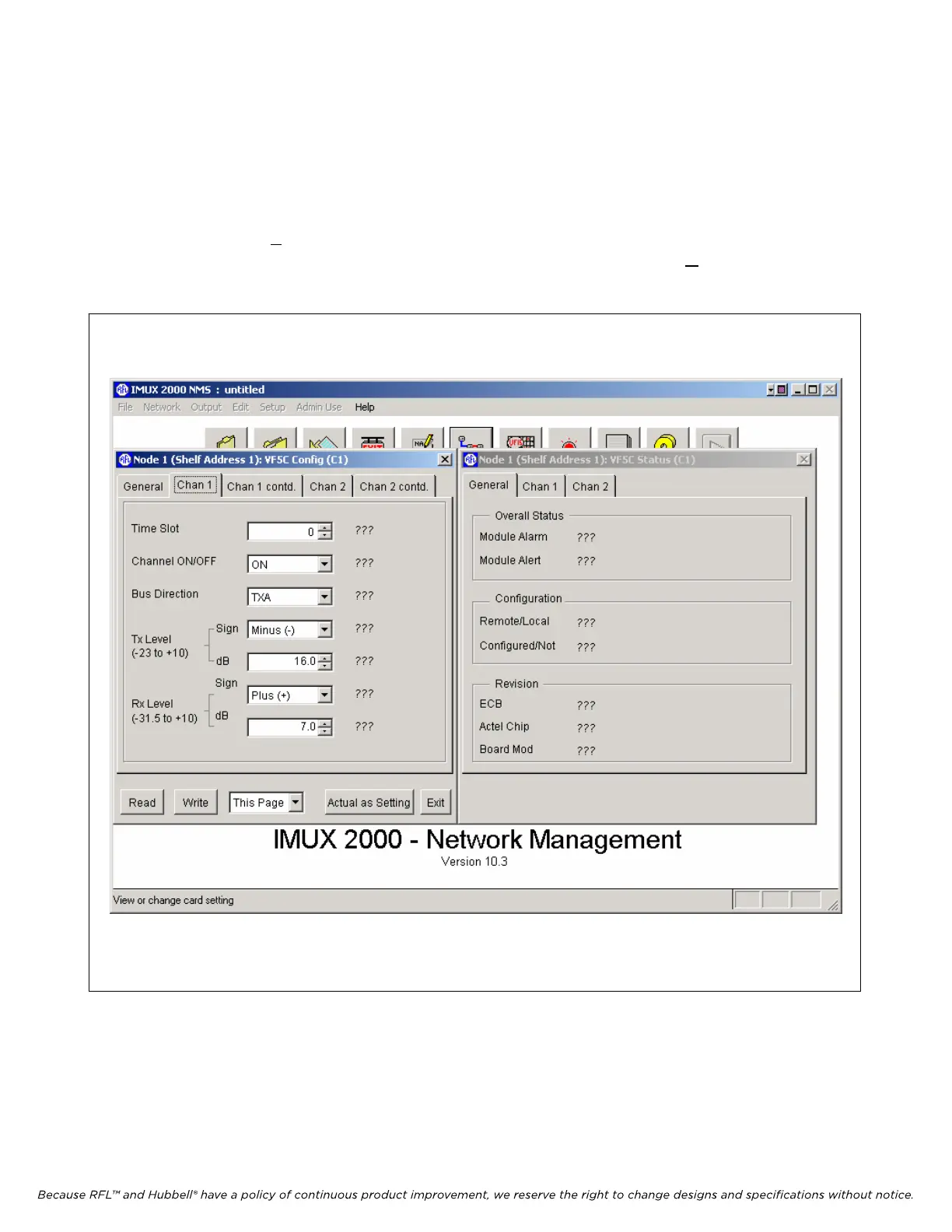

Figure 6-20. Configuration And Status Window for the VF5C
