6.5.3.7.4 View or Change a Card Window for the VF16B
The View or Change a Card window for the VF16B is shown in Figure 6-21. This is where the user
can view or change VF16B settings. The “Actual” column is what the VF16B module is actually set to,
and the “Set to” column contains settings the user can change. Refer to the VF16B Instruction Data
sheet in Section 16 of this instruction manual for additional information on the VF16B module. When
finished with either viewing or changing the VF16B settings, click on Exit to return to the
Display/Change Node window as shown in Figure 6-16. To view the settings of the DS562I card, first
click on DS562I and then click on View. This will bring you to the Configuration and Status window
for the DS562I card as shown in Figure 6-22.

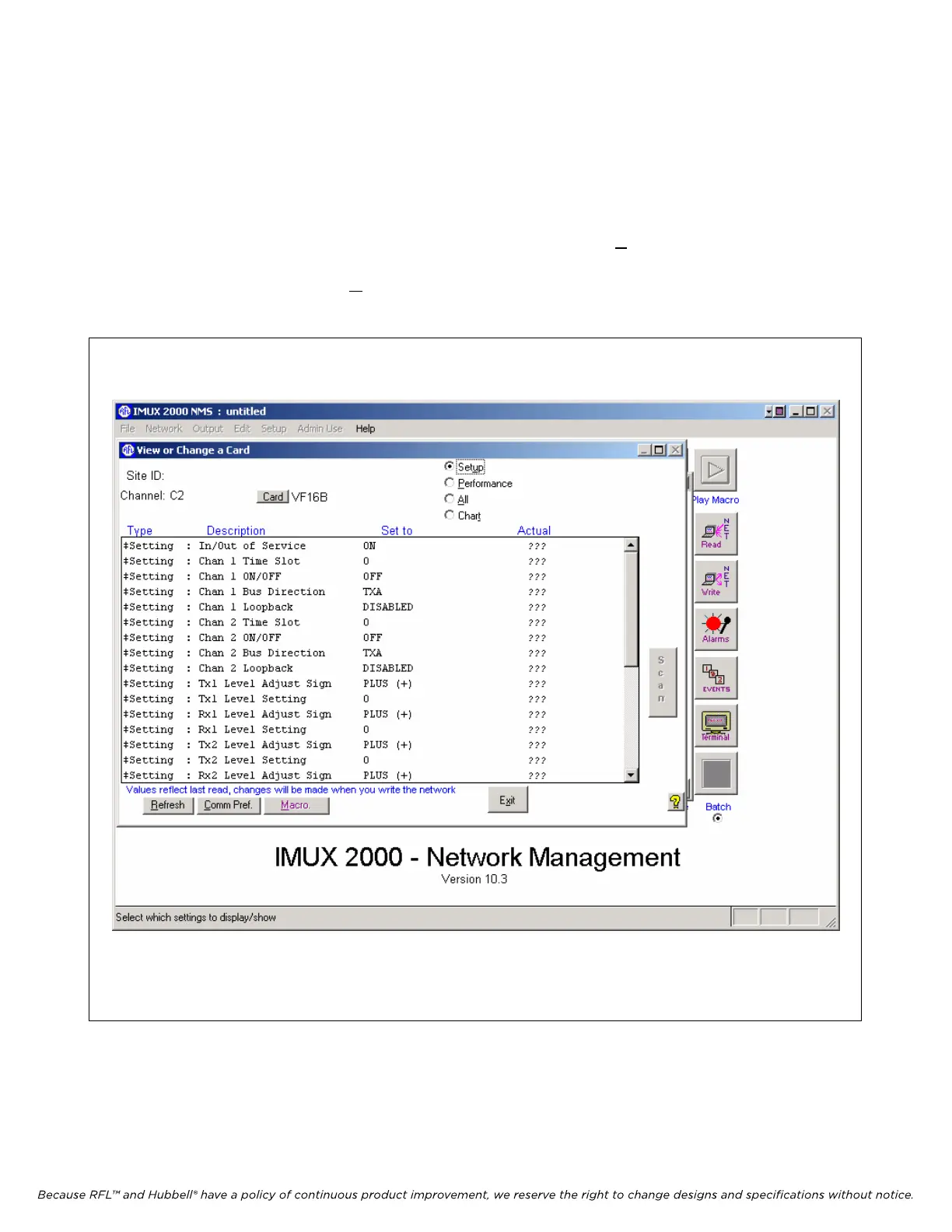

Figure 6-21. View or Change a Card Window for the VF16B
