6.5.3.7.5 Configuration And Status Window for the DS562I
The Configuration and Status window for the DS562I is shown in Figure 6-22. . The user can change
parameters by making selections in the control boxes. The actual values appear immediately to the
right of the control boxes. Refer to the DS562I Instruction Data sheet in Section 15 of this instruction
manual for a list of DS562I parameters and DS562I programming instructions. When finished with
either viewing or changing the DS562I settings, click on Exit to return to the Display/Change Node
window as shown in Figure 6-16. To view the settings of the NCM module, first click on NCM and
then click on View. This will bring you to the Configuration And Status window for the NCM module
as shown in Figure 6-23.

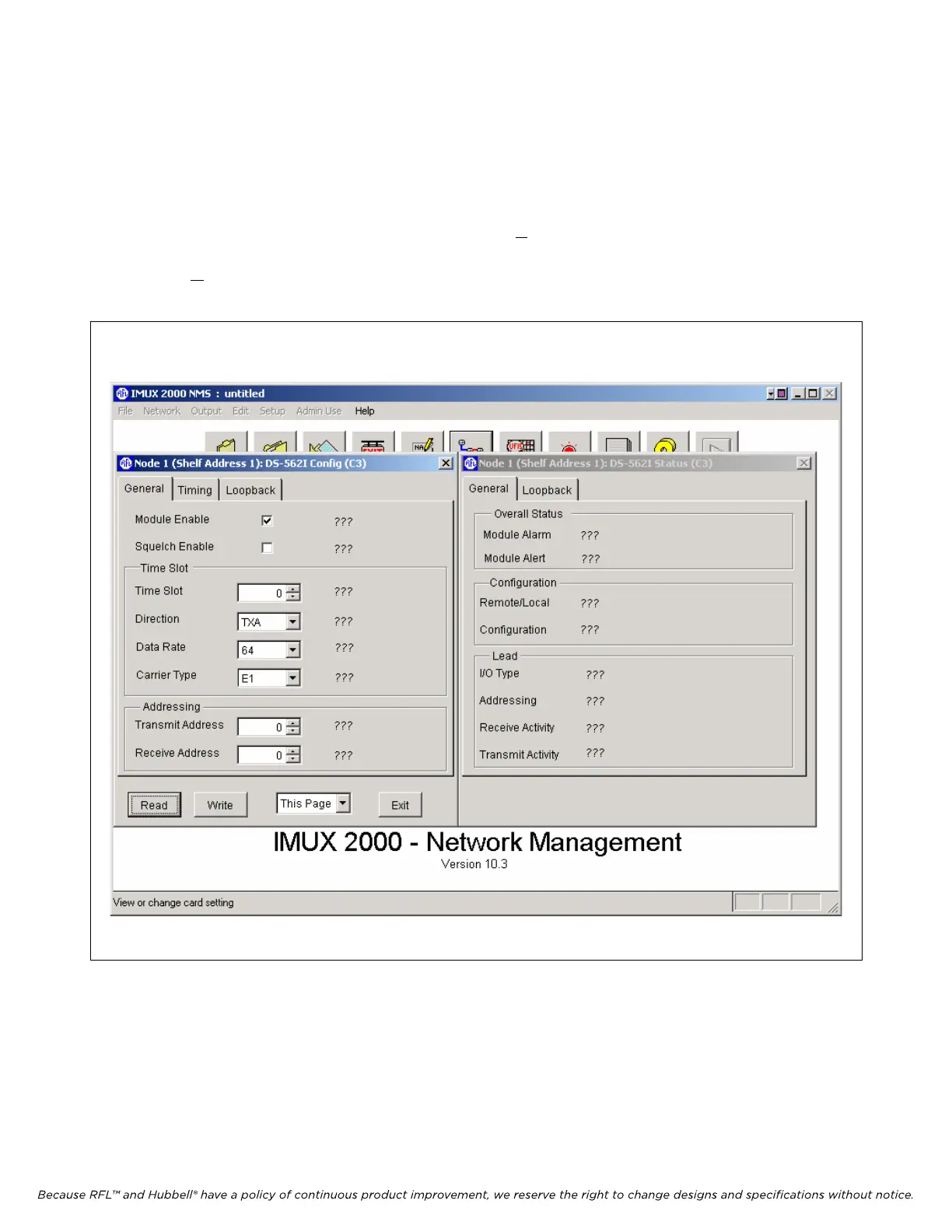

Figure 6-22. Configuration And Status Window for the DS562I
IMUX 2000E1 RFL Electro
nics Inc.
February 28, 2006 6-30 (973) 334-3100
