Because RFL™ and Hubbell® have a policy of continuous product improvement, we reserve the right to change designs and speciﬁcations without notice.

IMUX 2000E1 RFL Electronics Inc.

Pin Function

1 TIMIN-

2 TIMIN+

3 -

4 -

5 TIMOUT-

6 TIMOUT+

Pin Function

1 -

2 RS232TXD

3 RS232RXD

4 -

5 GND

6 -

7 -

8 -

9 -

MA271

E1 OUT

E1 IN

EXT

TMG

RS-232

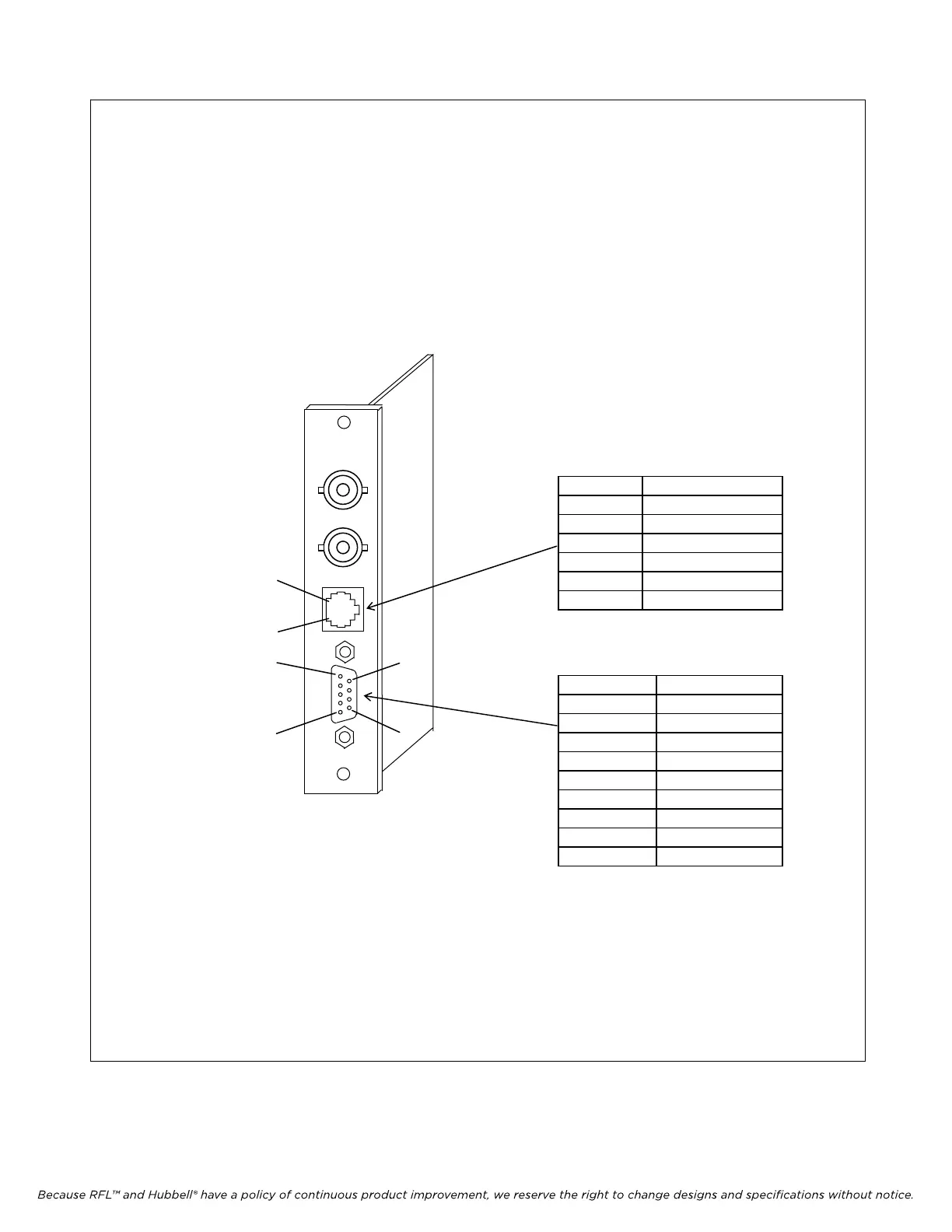

Figure 2-11. MA-271 pinouts

6-Position

Modular

Jack

DB-9

Male

April 1, 2007 2-20 (973) 334-3100
