MA-324 The MA-324 accepts a 50-pin Telco connector (Amphenol 57-30500
or equivalent, as shown in Figure 5.) One MA-324 Module Adapter
is used for each RFL VF-6I module and occupies two rear slots in
the IMUX 2000E chassis. The MA-324 is used to convert one of the
4-wire outputs (Channel 1) from 4-wire to 2-wire. The other 4-wire
output is not used. The impedance is 600 Ohms, the frequency
response is ±2dB from 200Hz to 3000Hz, and the transformer loss
(hybrid loss) is ≅ 4.0dB.
Pin No. MA-324 Pin Functions
1 Ring
3 SG
7 M
26 Tip
28 E
32 SB
Note: All unlisted pins are not used.
MA-324

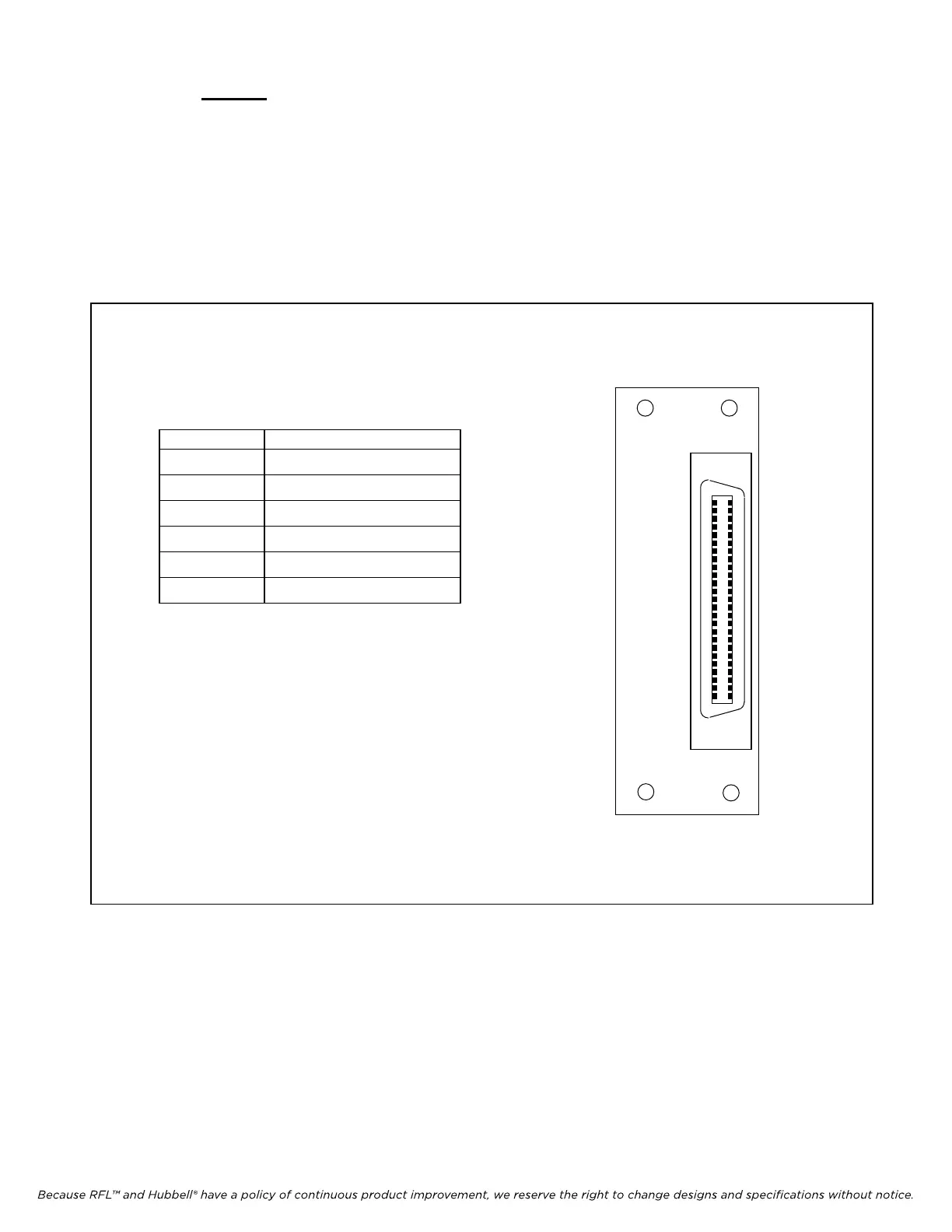

Figure 4. MA-324 Module Adapter
RFL VF-6I RFL Electronics Inc.
November 17, 2004 7 (973)
