MA-303
PIN 3 = RING
PIN 4 = TIP
PINS 1,2, 5, 6 NOT USED
1
2
3 RING
4 TIP
5
6
1 CHANNEL 1 VOICE (RJ-11 JACK)
L CHANNEL 1 LINE (BANTAM JACK)
D CHANNEL 1 DROP (BANTAM JACK)
2 CHANNEL 2 VOICE (RJ-11 JACK)
L CHANNEL 2 LINE (BANTAM JACK)
D CHANNEL 2 DROP (BANTAM JACK)
NOTE: CHANNEL 2 CONNECTORS
NO
T USED WITH VF-10D

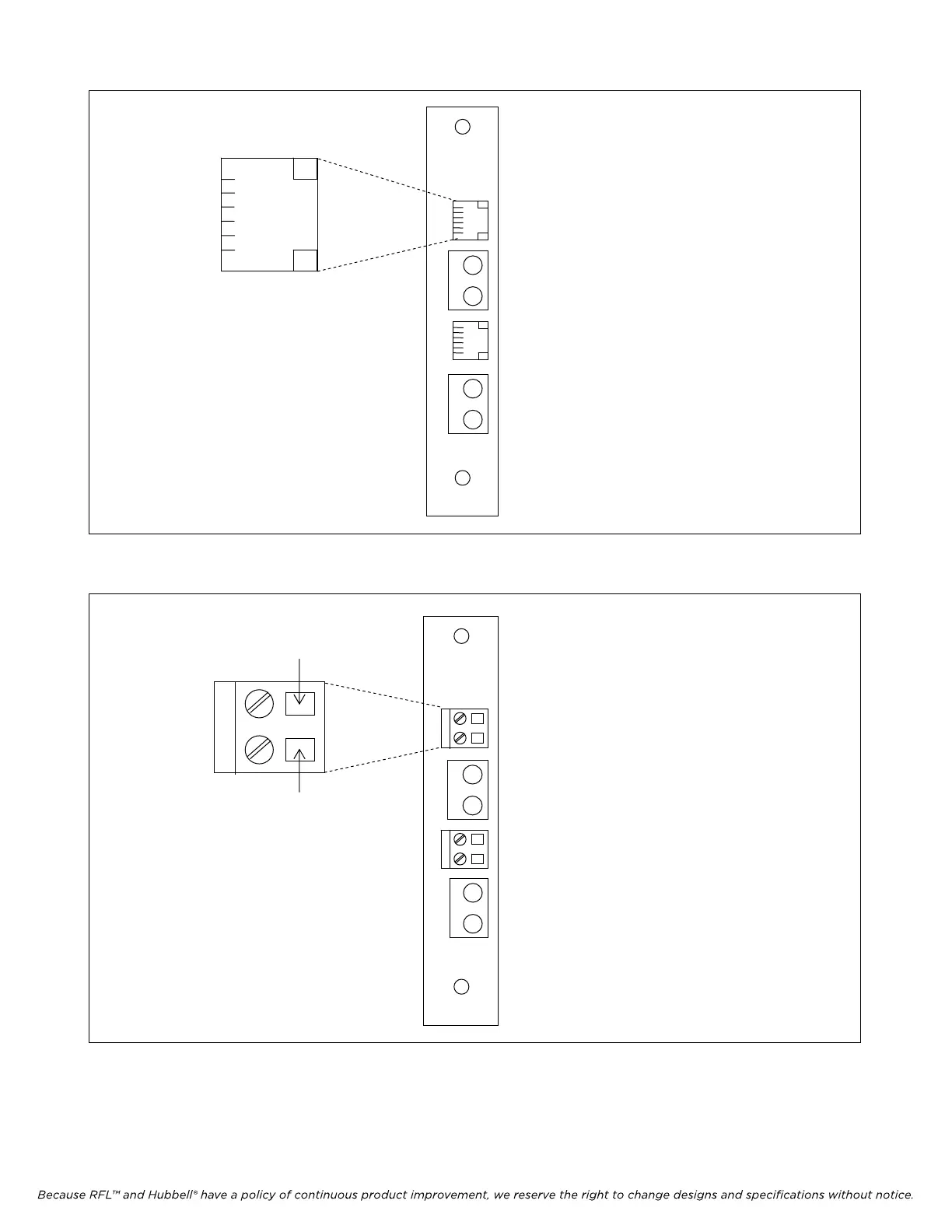

Figure 3. MA-303 Modul
e Adapter, used with all RFL VF-10D office-end module.
Figure 4. MA-303B
Module Adapter, used with RFL VF-10D office-end module.
MA-303B
C
H CHANNEL 1 VOICE (REMOVABLE TERMINAL BLOCK)
1
L CHANNEL 1 LINE (BANTAM JACK)
D CHANNEL 1 DROP (BANTAM JACK)
C
H CHANNEL 2 VOICE (REMO
VABLE TERMINAL BLOCK)
2
L CHANNEL 2 LINE (BANTAM JACK)
D CHANNEL 2 DROP (BANTAM JACK)
NOTE: CHANNEL 2 CONNECTORS
NOT USED WITH VF-10D
TIP
RING
