Paper Transfer
PTR (Paper Transfer Roller) Unit
1. Open the duplex unit.

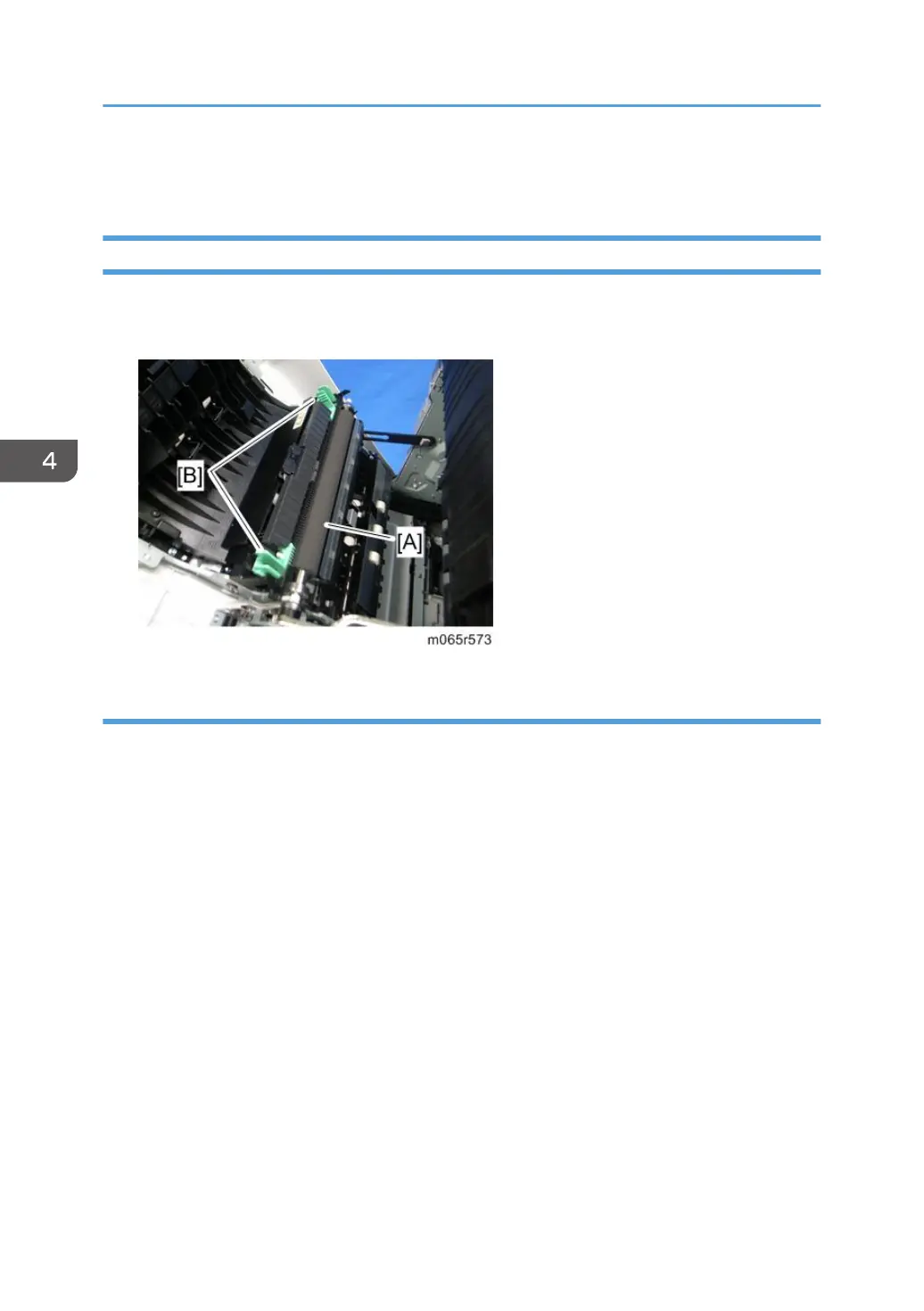

2. Remove the PTR unit [A], releasing the two locks [B].
When Installing the PTR Unit
To install the PTR unit, pinch the two green locks [A] while you push the unit back into position.
Do not insert objects between the metal plate [B] and its black plastic base. Otherwise, the plate could
be bent, and this can cause poor image quality.
4. Replacement and Adjustment
140
