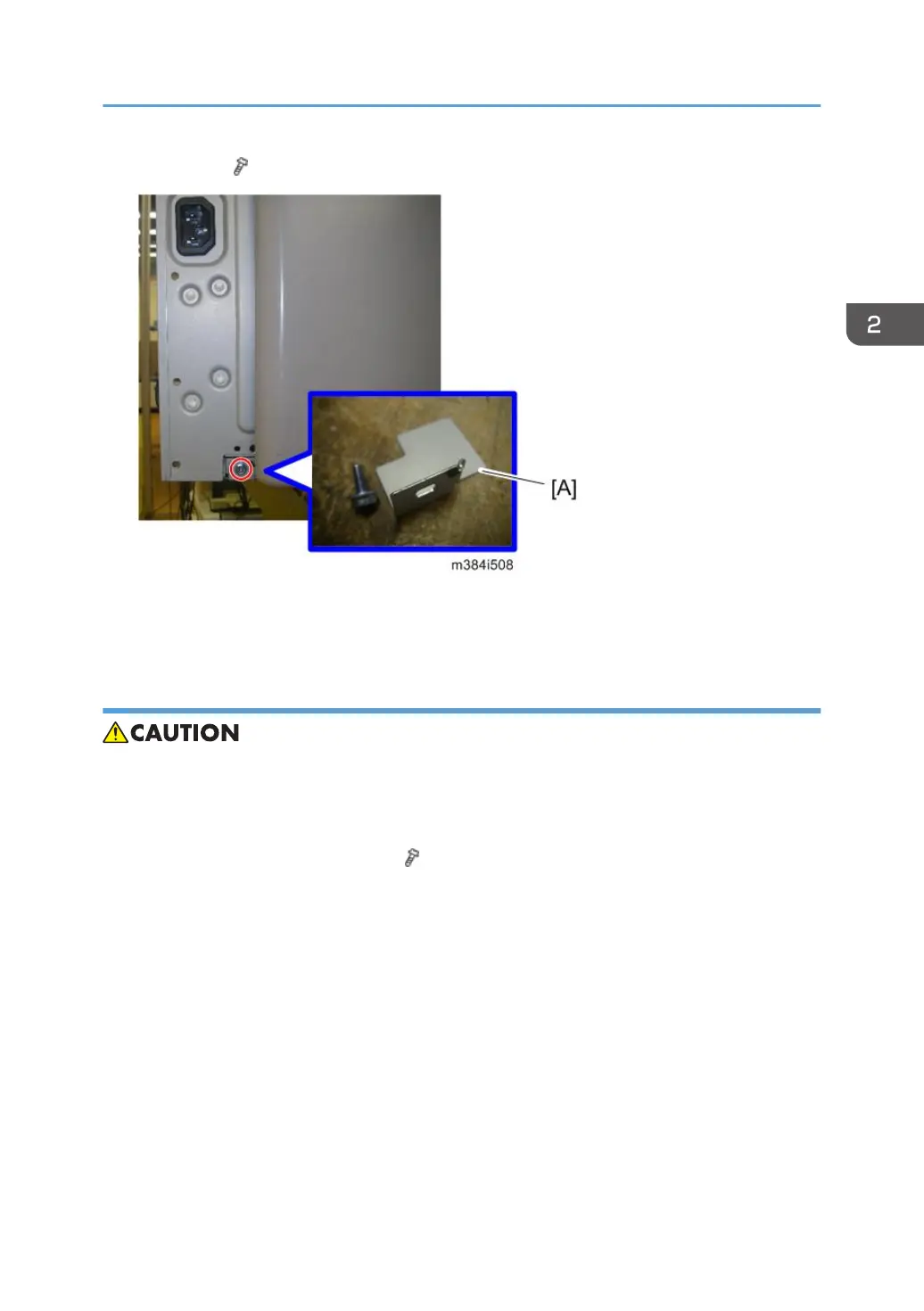

13. Bracket [A] ( x 1)
14. Connect the relay harness to the relay harness of the mainframe.
15. Reassemble the machine.
For Installing the Securing Bracket
• The securing bracket must be installed when the tray heater is installed in the machine with the
paper feed unit (M384).
1. Remove the holder (page 48 "Caster Table (M393)").
2. Reinstall the inner left lower cover ( x 3).
3. Close the left cover.
4. Remove the left cover of the paper feed unit (page 48 "Caster Table (M393)").
Tray Heater
69
