Tray Heater (Mainframe)
• Before installing, make sure that the power source rating of the tray heater is same as the machine.

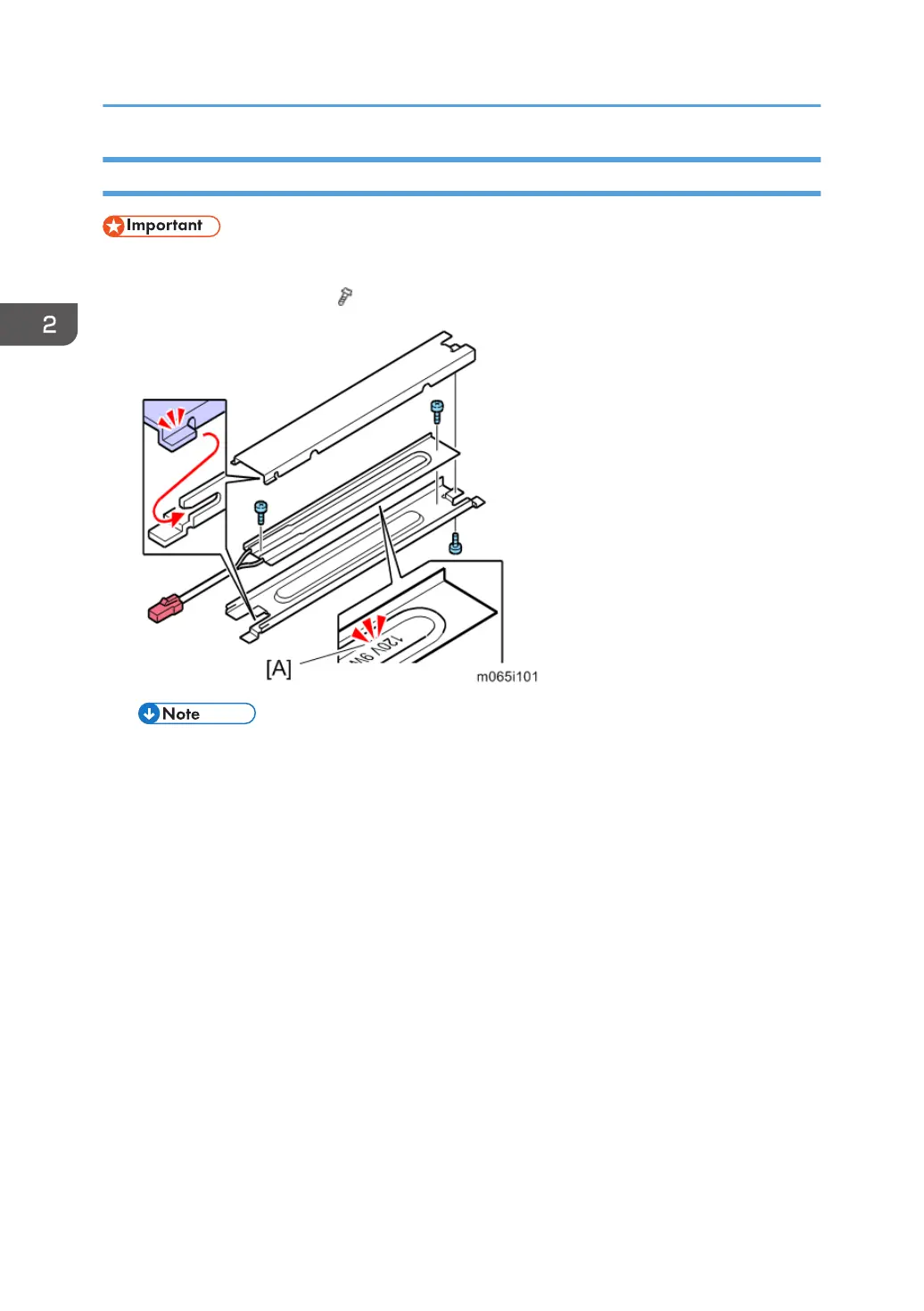

1. Assemble the tray heater ( x 3).
• Before installing the tray heater, check if the destination is correct.
• [A]; 120V 9W: NA, 230V 9W: EU/AA
2. Rear cover (page 91)
3. Right cover (page 90)
4. Controller box (page 235)
5. Inner left lower cover (page 96)
6. HVPS: CB bracket (page 242 "HVPS: CB Board")
