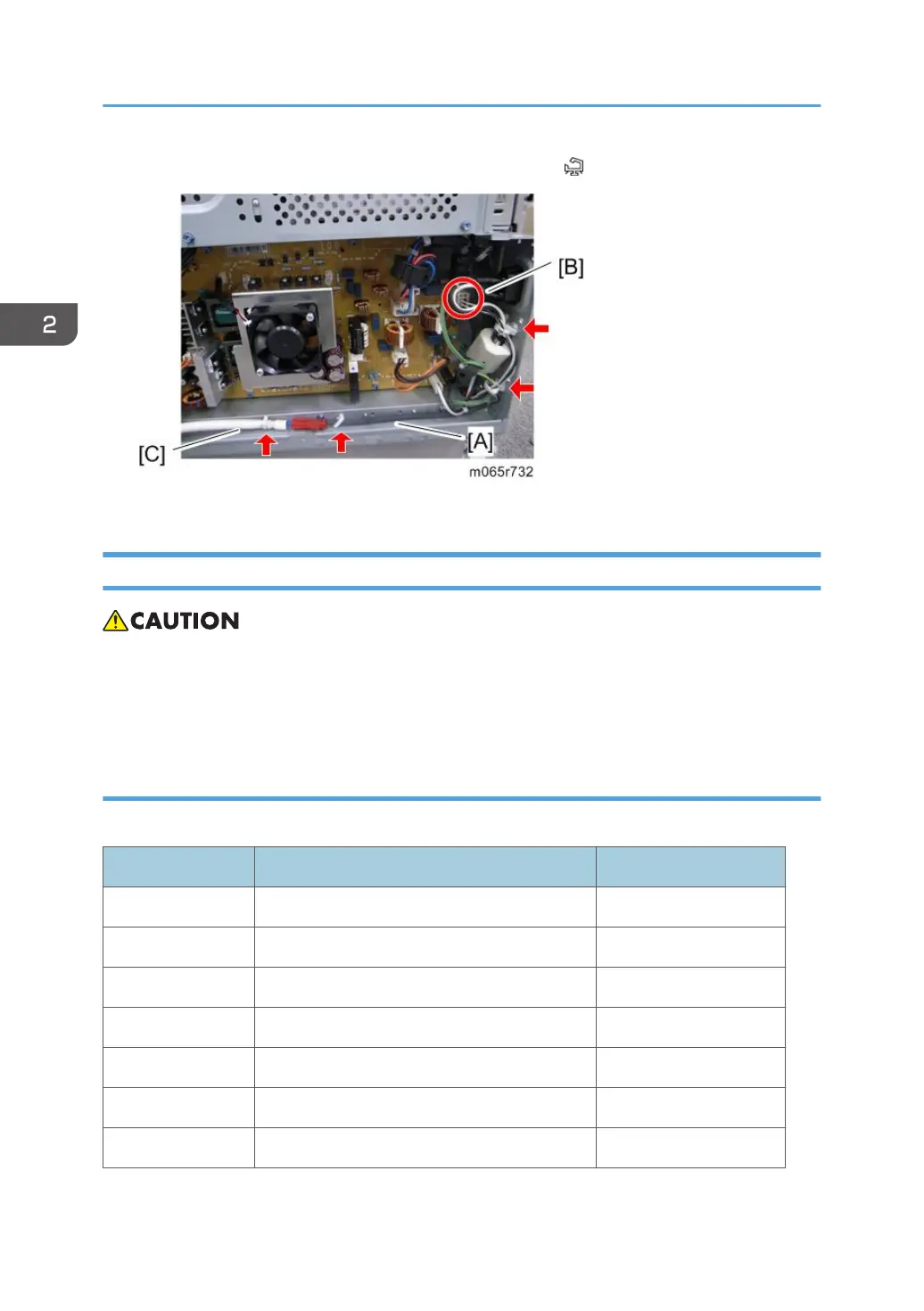

17. Connect the relay harness [A] to the heater harness [C] ( x 2).
18. Reassemble the machine.
Tray Heater (Optional Unit)
1. Unplug the machine power cord before starting the following procedure.
2. Do the following procedure not to damage any harnesses.
3. Check that no harnesses are damaged or pinched after installation.
Component Check
Check the quantity and condition of the accessories against the following list.
No. Description Q'ty
1 Tray heater 1
2 Securing bracket (right rear) 1
3 Securing holder 1
4 Securing bracket (left) 1
5 On-standby decal 1
6 Edge clamp 1
7 Clamp 6
2. Installation
